2024-2026 Year Version.

When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.

Miniature Fuses_SFL_SPT478_SETsafe & SETfuse.pdf

2021-2023 Year Version.

While purchasing 2021-2023 version products, please refer to the data below.

Mini Fuses_SPT478_SETsafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Xiamen SET Electronics Co., Ltd.

● Miniature Size

● Time-Lag

● Surge Protection

● Designed to IEC 60127-3/Sheet4 / GB 9364.3/Sheet4

● RoHS & REACH Compliant

PCB Mount

Radial

● Power Supply

● Household Appliance

● General Lighting

● Smart Home

● Office Equipment

● Electric Tool

● Medical Equipment

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com

UL (America):

Standards: UL 248

File No.: E345932

UL_SPT478_SETsafe & SETfuse.pdf

cUL (Canada):

Standards: UL 248

File No.: E345932

cUL_SPT478_SETsafe & SETfuse.pdf

VDE (Germany):

Standards: IEC 60127

File No.: 40049409

VDE_SPT478_SETsafe & SETfuse.pdf

CCC (China):

Standards: GB/T 9364

File No.: 2020980207000070

CCC_SPT478_SETsafe & SETfuse.pdf

KC (Korea)

Standards: K60127

File No.: SU05023-18002 / SU05023-18005 / SU05023-18001 / SU05023-18003 / SU05023-18004

KC_SPT478_SETsafe & SETfuse.pdf

PSE (Japan)

Standards: J60127

File No.: PSE18021397 / PSE18021398

PSE_SPT478_SETsafe & SETfuse.pdf

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.

Quality Policy.

Qualified Supplier of Raw Materials.

Incoming Quality Control (IQC):

Acceptance Quality Limit (AQL), Dimension, Function, Visual Inspection, RoHS & REACH Test. etc..

Process:

Online Inspection and Function Test 100%, etc..

In Process Quality Cortrol (IPQC): AQL, Dimension, Function, Visual Inspection, etc..

Final Quality Control (FQC):

AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test, etc..

Reliability Test:

AQL Sampling Test.

Outgoing Quality Control (OQC):

Packaging, Labeling, Quantity Inspection, etc..

Agency Information:

Safety Certificate Agency Annual, Quarterly Audits. Include UL, cUL, VDE, TUV, KC, PSE, CCC. etc..

Quality Management System:

TUV Approved and Issued Certificate.

SETsafe | SETfuse

SET

Miniature Fuses is an Over Current Protection device. Its resistance is very low. When the circuit works normally, it is equivalent to a wire, which can conduct the circuit continuously and stably. When the current fluctuates due to circuit instability or external interference, it should also be able to withstand a certain range of overload. Only when overload or short circuit happens, Miniature Fuses can blow fast to protect the circuit.

SETsafe | SETfuse Miniature Fuses is widely used in all kinds of electrical equipment. It has a variety of mounting modes, compact structure, reliable and stable performance. Technical parameters of SETsafe | SETfuse Miniature Fuses: Its rated current ranges from 0.1 A to 40 A, rated voltage ranges from 125 VAC to 500 VAC, and from 24 VDC to 600 VDC, complies with RoHS and REACH, and is approved by cURus, VDE, PSE, CCC, CQC, KC, TUV.

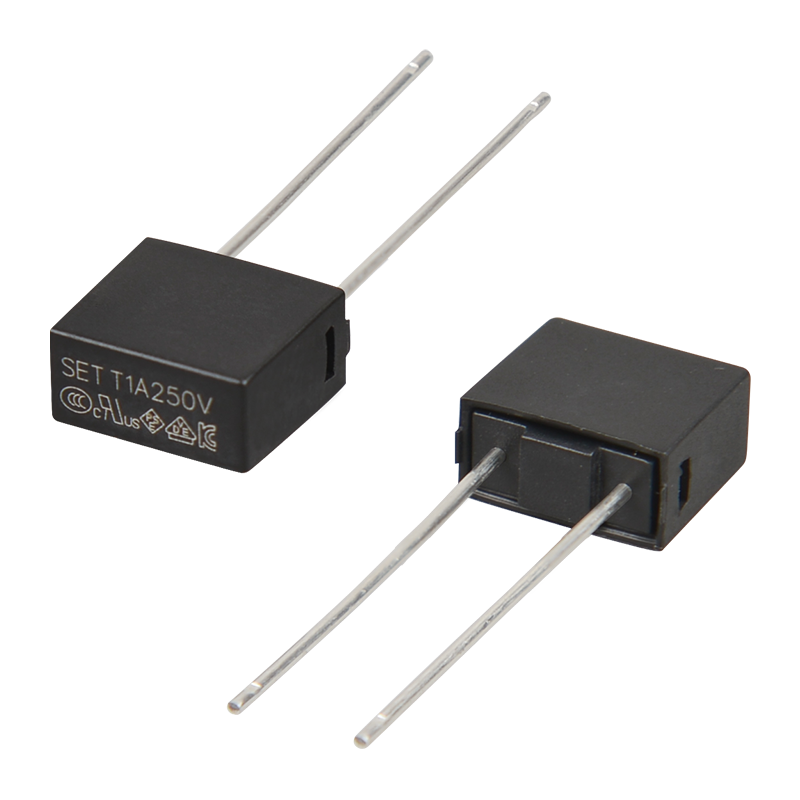

SPT478 series
