Thyristor Surge Suppressors (TSS)
SPxxxxSD series×

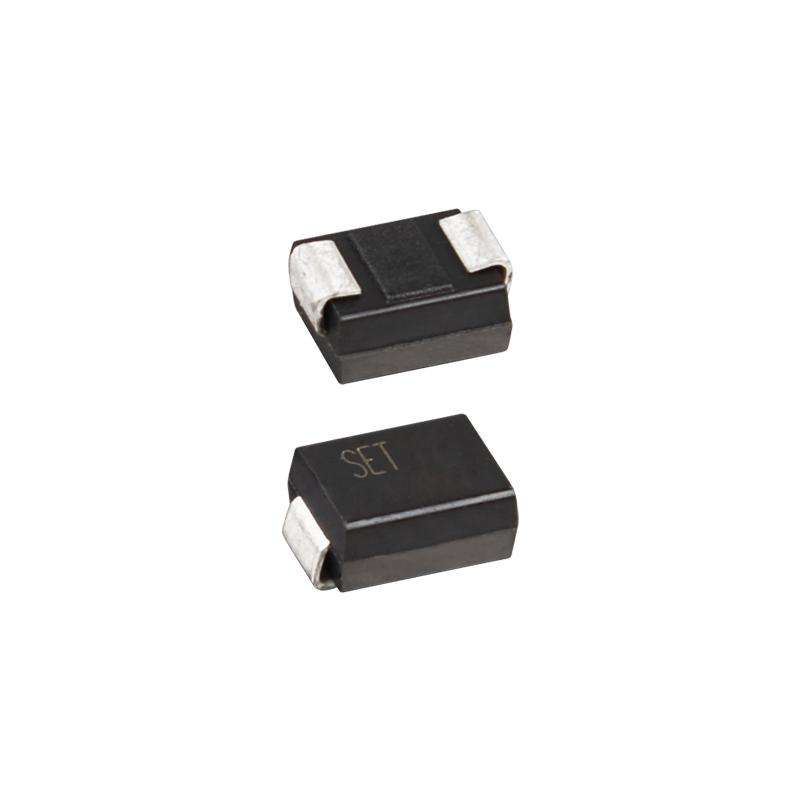

SPxxxxSD series

Peak off-state Voltage (VDRM): 6 ~ 400 V

Capacitance (CJ): 40 ~ 150 PF

Surge Rating: 8 kV @ 10/700 μs

Max. Peak Pulse Current (IPP) (10/1000 µs): 200 A

Datasheet
Manufacturer
Features
Mounting Style
Termination Style
Applications
Quality Assurance
Brand
Tradename
Overview

2024-2026 Year Version.

When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.

TSS SPxxxxSD(SMB)_SETsafe & SETfuse.pdf

2021-2023 Year Version.

While purchasing 2021-2023 version products, please refer to the data below.

TSS SPxxxxSD(SMB)_SETsafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Xiamen SET Electronics Co., Ltd.

● Lower capacitance

● Low profile package

● Low on-state voltage

● Max Surge capability 10×700 μs @40 Ω: 4 kV

● Excellent capability of absorbing transient surge

● Quick response to surge voltage (ns Level)

● Eliminates overvoltage caused by fast rising transients

● Moisture sensitivity level: Level 1

● Non degenerative

● Flammability Rating: UL 94 V-0

● Halogen Free and RoHS Compliant

Surface Mount

Termination Style

SMD

● Modems

● Telephones

● line cards

● Answering Machines

● FAX Machines

● T1/E1

● xDSL

Quality Assurance

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.

Quality Policy.

Qualified Supplier of Raw Materials.

Incoming Quality Control (IQC):

Acceptance Quality Limit (AQL), Dimension, Function, Visual Inspection, RoHS & REACH Test. etc..

Process:

Online Inspection and Function Test 100%, etc..

In Process Quality Cortrol (IPQC): AQL, Dimension, Function, Visual Inspection, etc..

Final Quality Control (FQC):

AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test, etc..

Reliability Test:

AQL Sampling Test.

Outgoing Quality Control (OQC):

Packaging, Labeling, Quantity Inspection, etc..

Quality Management System:

TUV Approved and Issued Certificate.

Download the certificate, please click the link.

https://www.setsafe.com/Support/Management-System/ISO-Certificate-Download.html
