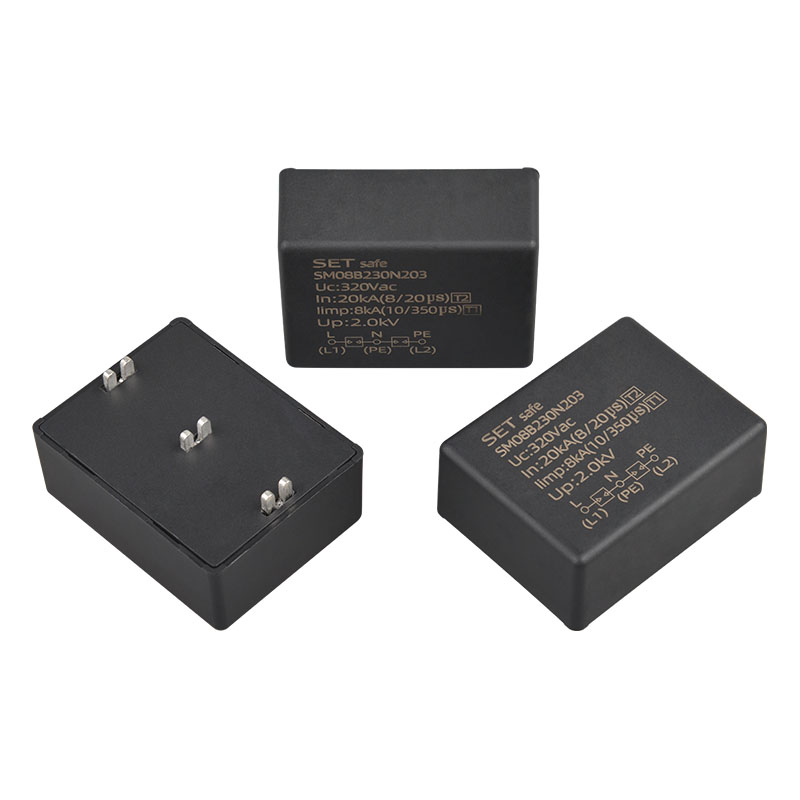

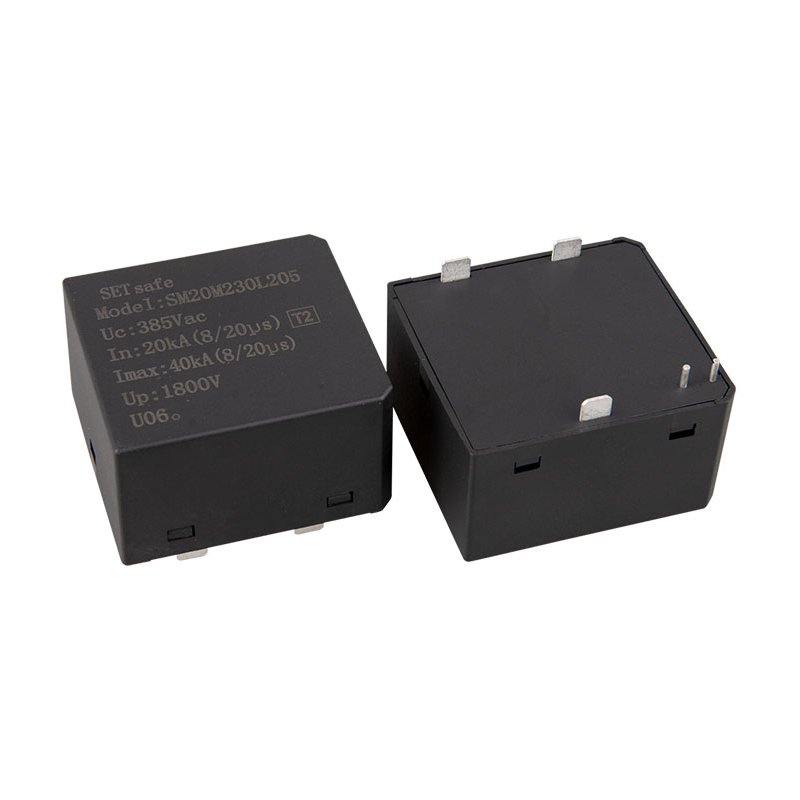

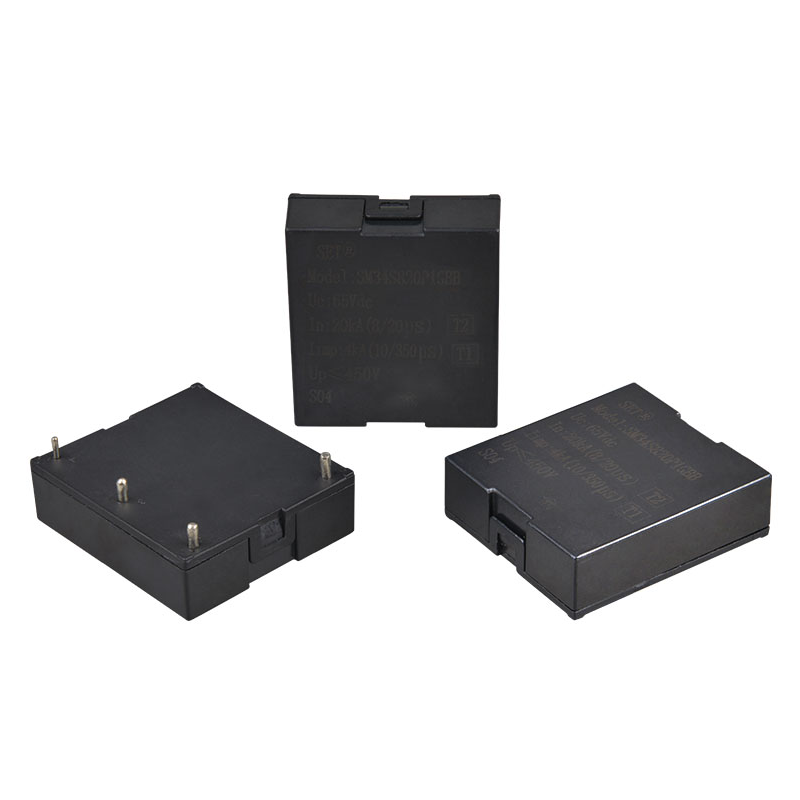

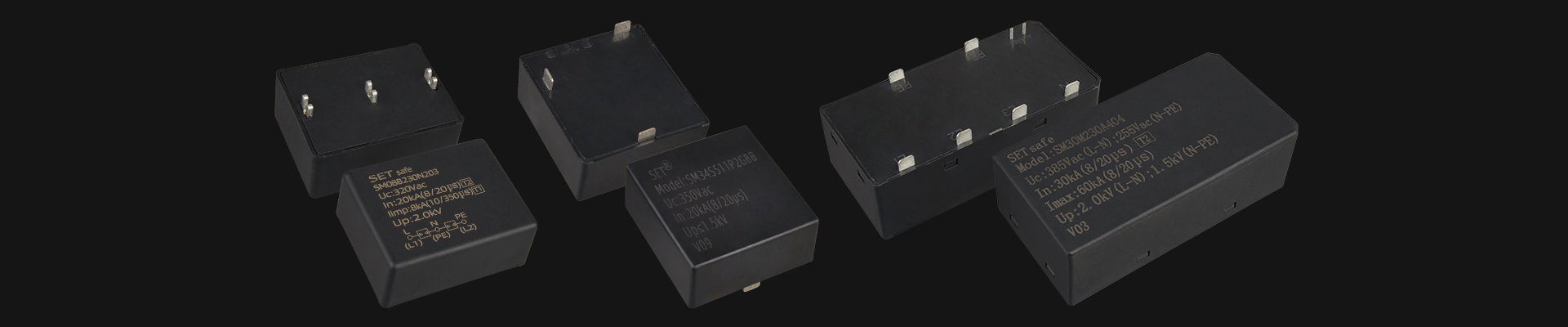

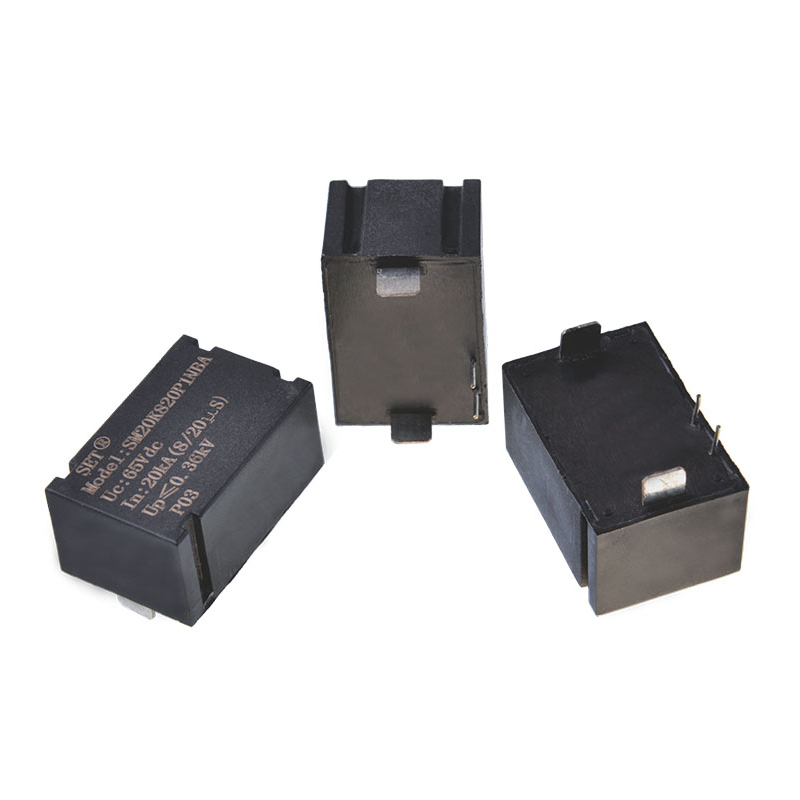

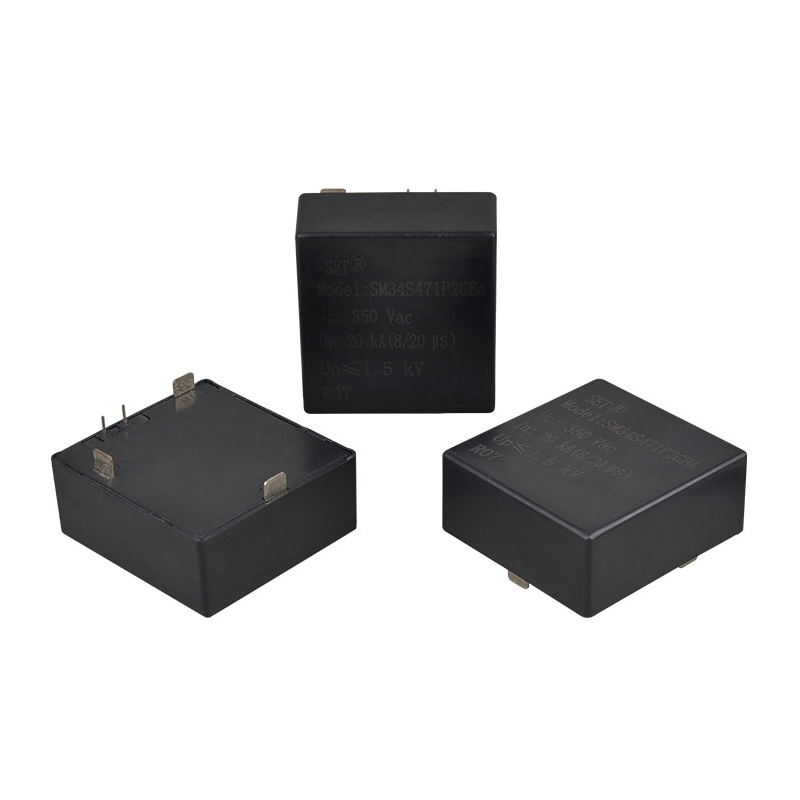

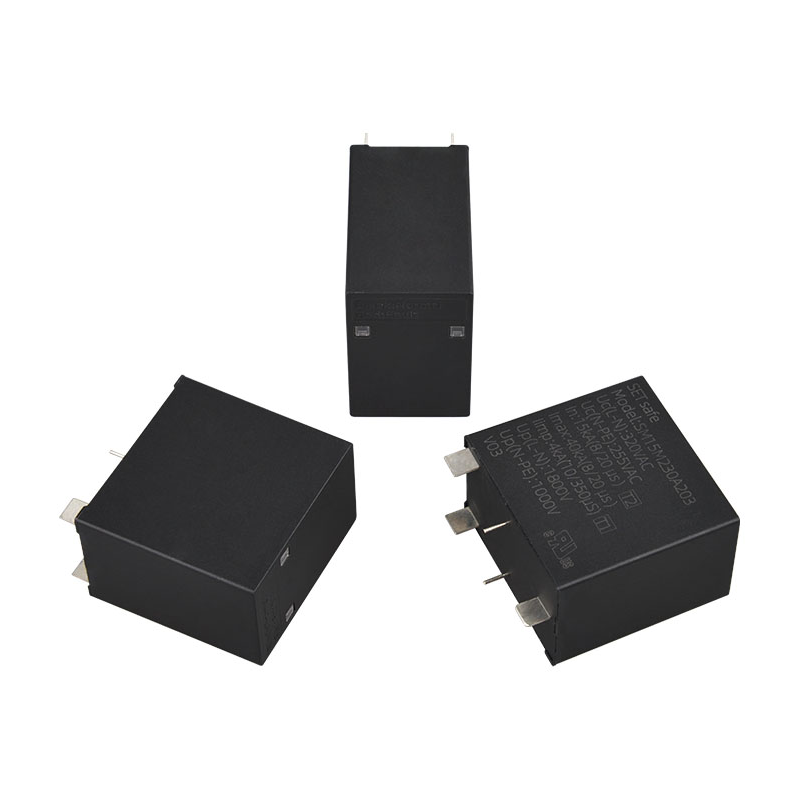

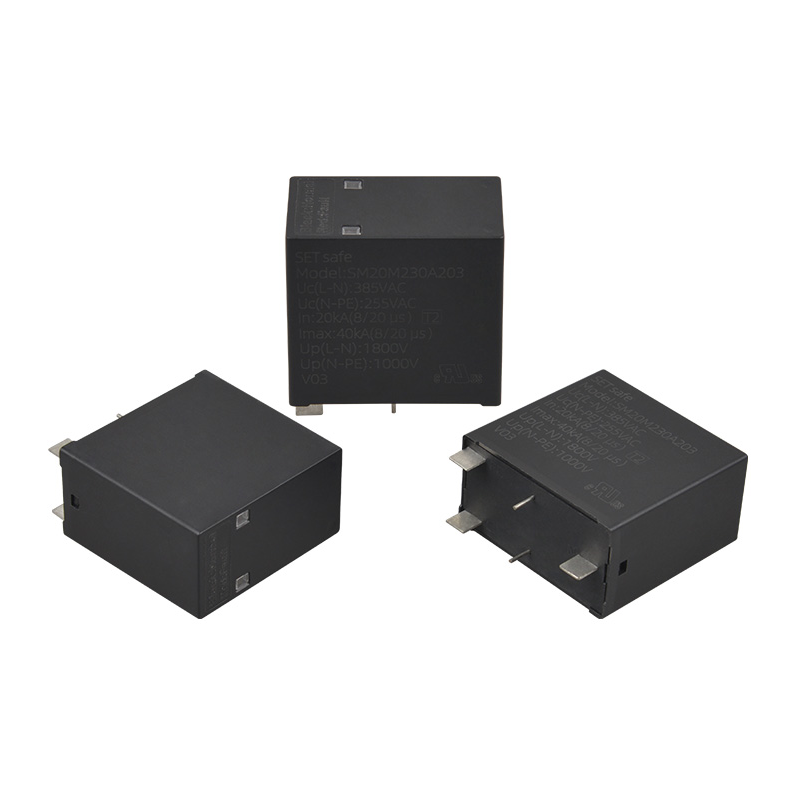

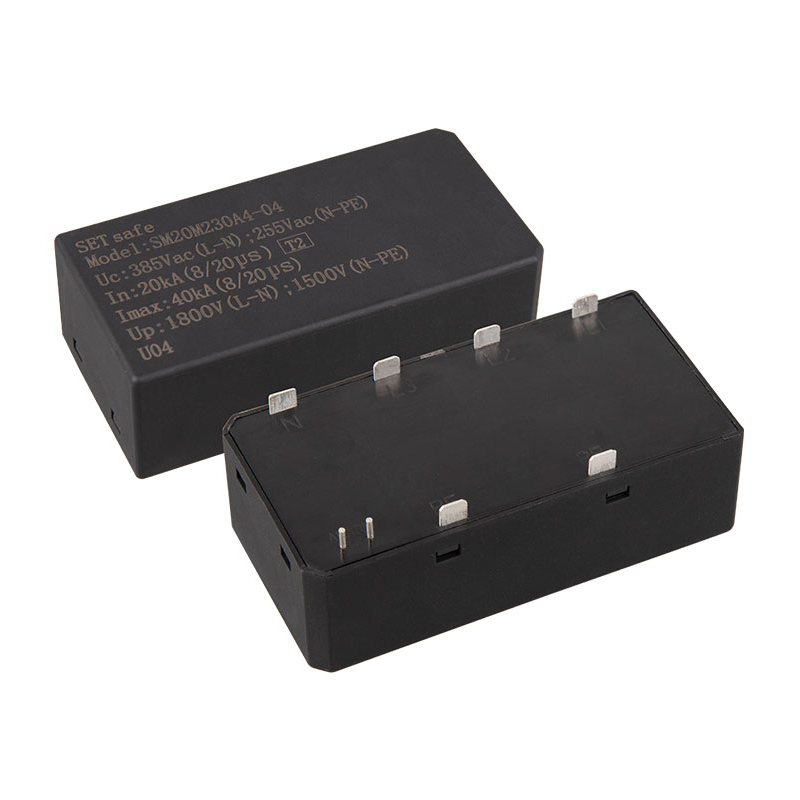

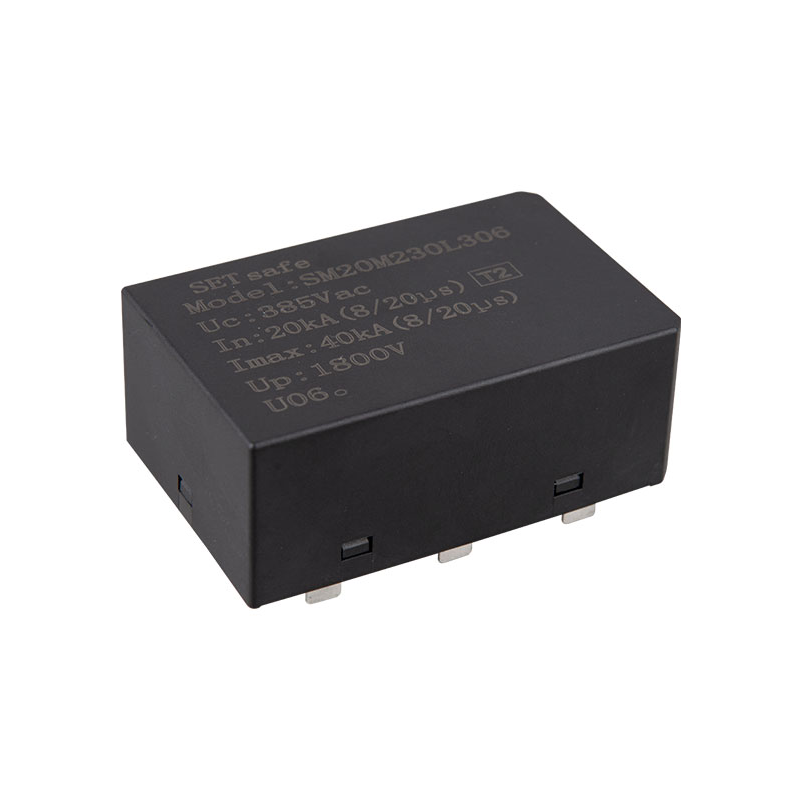

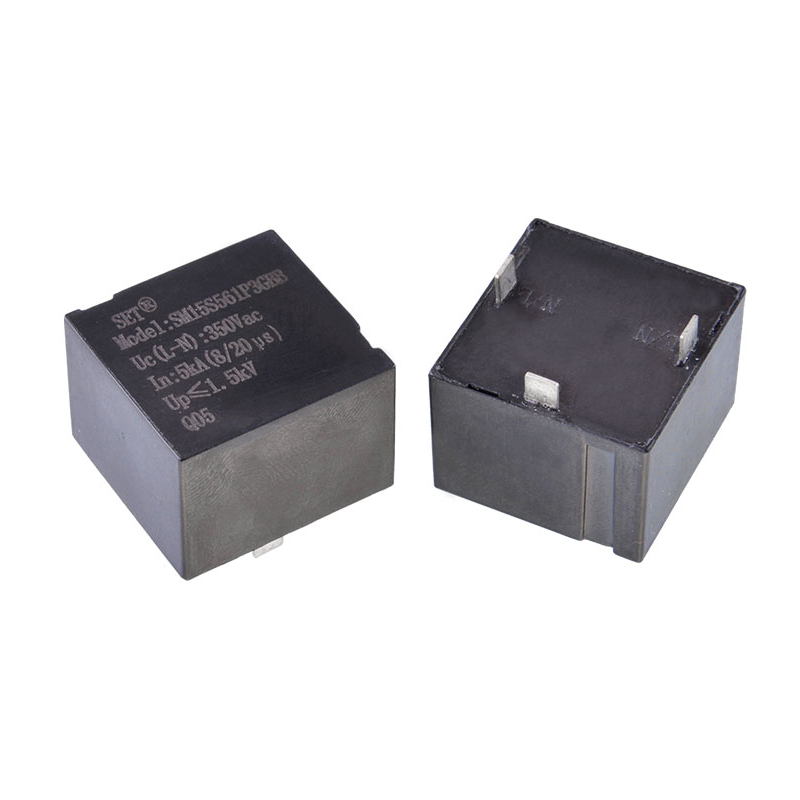

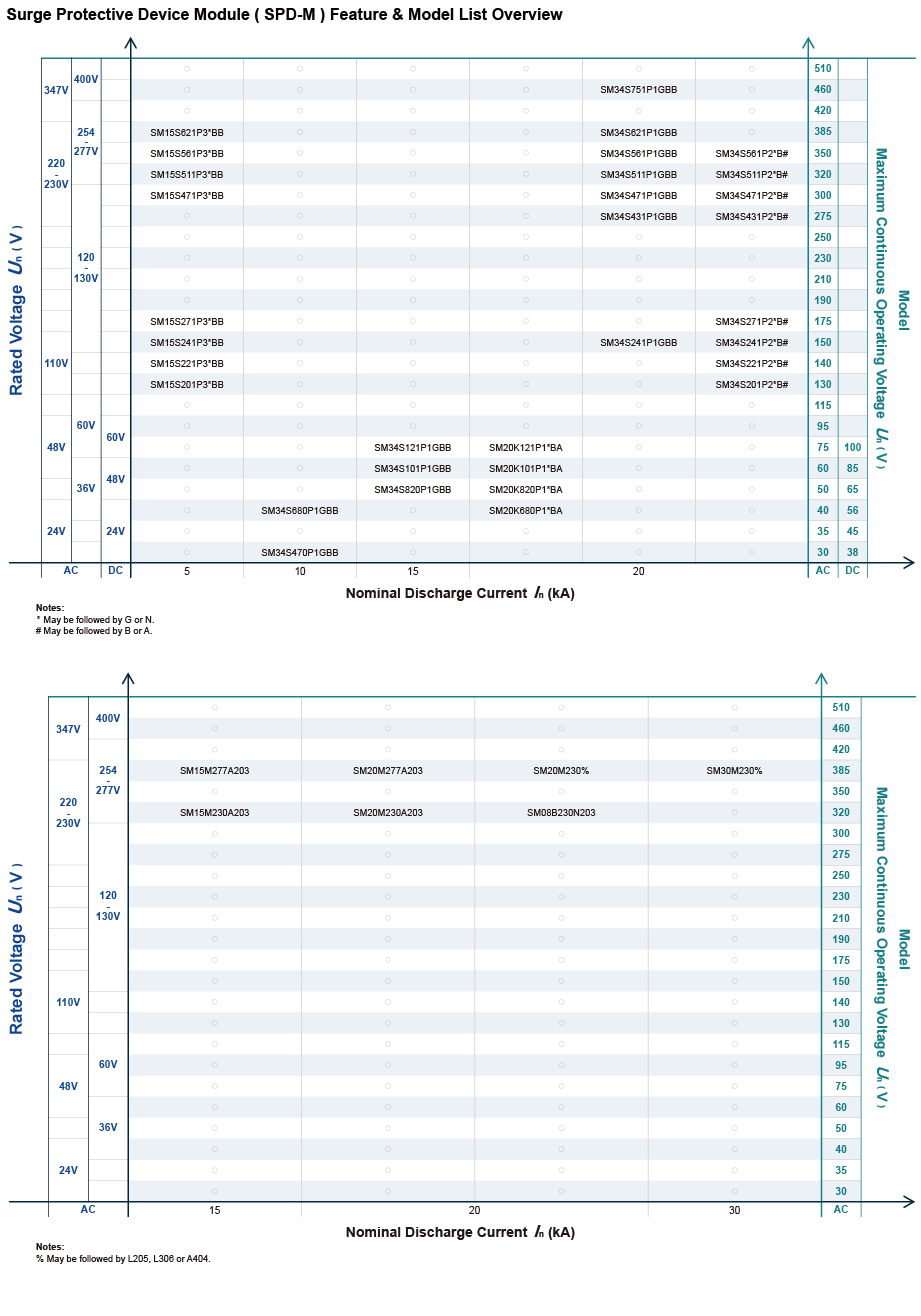

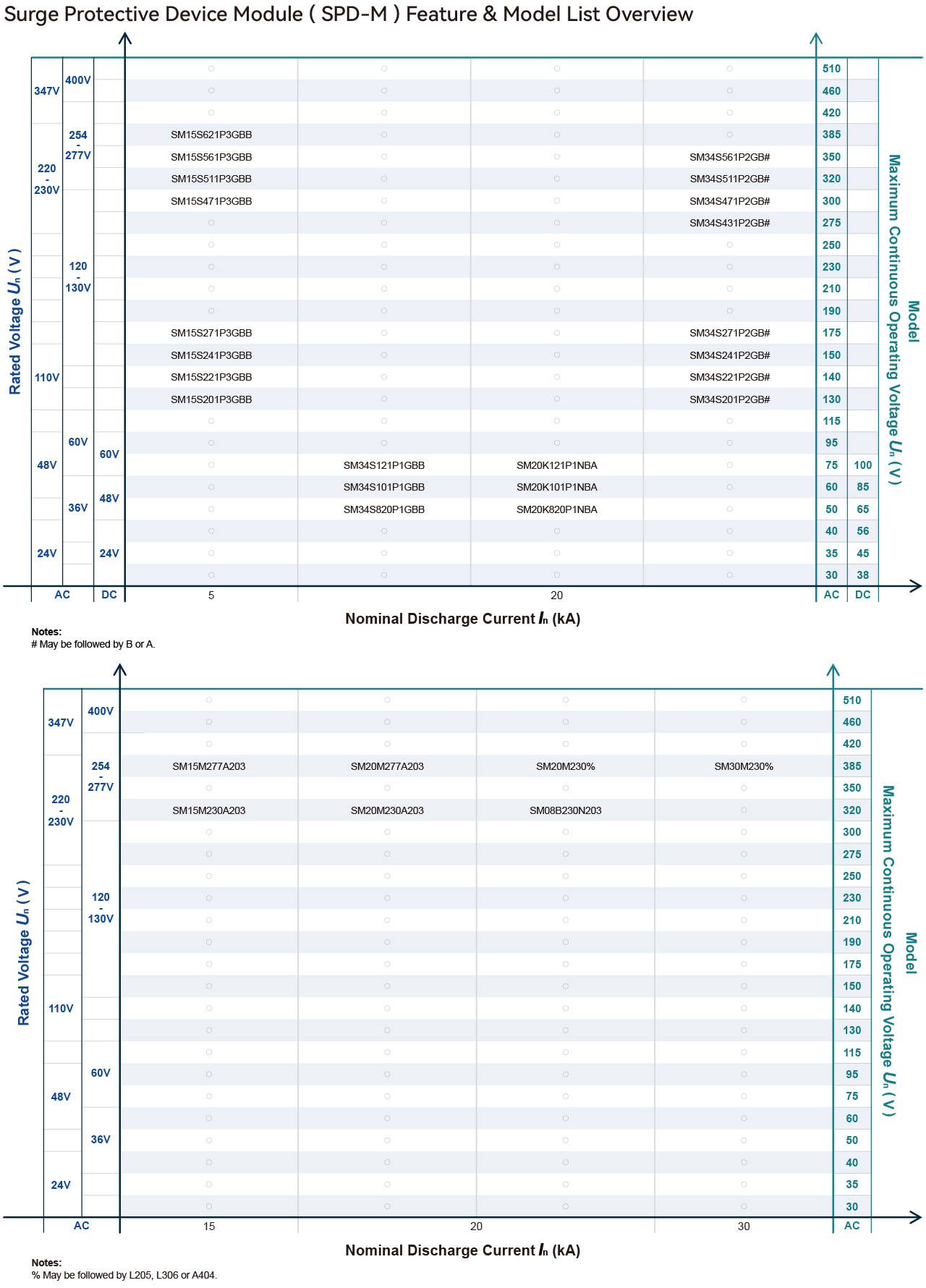

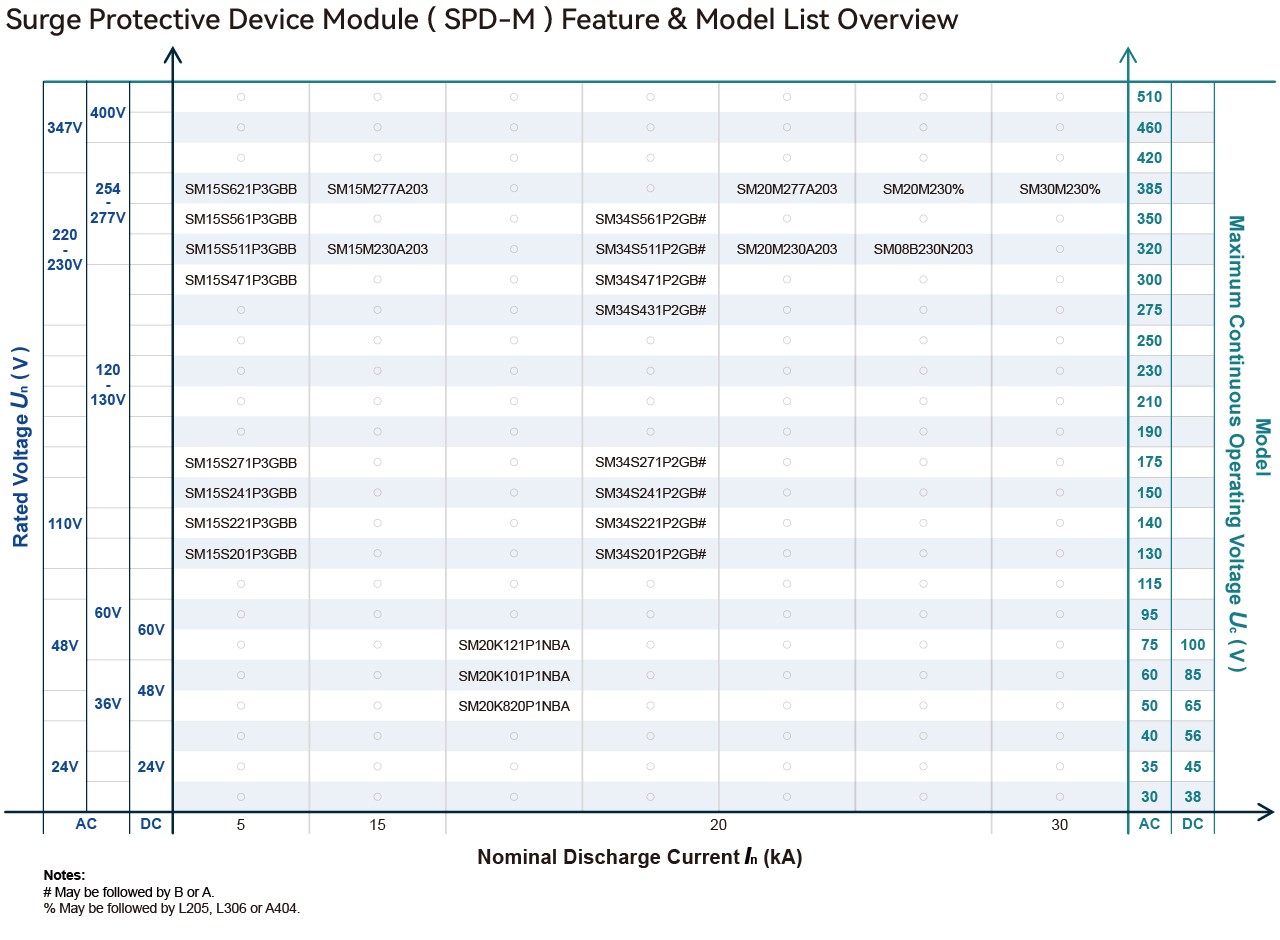

Surge protective device module (SPD-M) is an onboard lightning protection module that integrates functions, such as thermal protection, overvoltage protection, and remote signaling, and others. A single module can meet common-mode, differential-mode or full-mode protection requirements.SPD-M, an integrated solution, can simplify the design and selection of surge protection modules for users, and is suitable for surge protection of low-voltage AC or DC power supply equipment. Surge protective device module (SPD-M) has the characteristics of small board space, high level of integration, and complete protection functions and solutions.
Up
Voltage Protection Level
Maximum voltage to be expected at the SPD terminals due to an impulse stress with defined voltage steepness and an impulse stress with a discharge current with given amplitude and waveshape.
— (IEC 6643-11)
8/20 μs
8/20 Current Impulse
Current impulse with a nominal virtual front time of 8 µs and a nominal time to half-value of 20 µs.
— (IEC 61643-11)
1.2/50 μs
1.2/50 Voltage Impulse
Voltage impulse with a nominal virtual front time of 1.2 µs and a nominal time to half-value of 50 µs.
— (IEC 61643-11)
Uc
Maximum Continuous Operating Voltage
Maximum r.m.s. voltage, which may be continuously applied to the SPD's mode of protection.
— (IEC 61643-11)
In
Nominal Discharge Current
Crest value of the current through the SPD having a current waveshape of 8/20.
— (IEC 61643-11)
Iimp
Impulse Discharge Current for Class I Test
Crest value of a discharge current through the SPD with specified charge transfer Q and specified energy W/R in the specified time.
— (IEC 61643-11)
Imax
Maximum Discharge Current
Crest value of a current through the SPD having an 8/20 waveshape and magnitude according to the manufacturers specification. Imax is equal to or greater than In.
— (IEC 61643-11)
Modes of protection
An intended current path, between terminals that contains protective components, e.g. line-to-line, line-to-earth, line-to-neutral, neutral-to-earth.
IP
Degrees of Protection Provided by Enclosure (IP Code)
Classification preceded by the symbol P indicating the extent of protection provided by an enclosure against access to hazardous parts, against ingress of solid foreign objects and possibly harmful ingress of water
TCO
Thermal-Link
A non-resettable device incorporating a THERMAL ELEMENT which will open a circuit once only when exposed for a sufficient length of time to a temperature in excess of that for which it has been designed.
ATCO
Alloy Thermal-Link
Alloy Type Thermal-Link, Alloy is the thermal element.
● Telecom Equipment
● AC / DC Power Supply
● Uninterruptable Power Supply (UPS)
● Surge Protective Device (SPD)
● Embedded power supply
● Telecom Power Supply
SETsafe | SETfuse Quality Policy
Provide Industry-Leading Products
Raw-materials Supplier
Select critical raw materials: Must be from a manufacturer with quality management system (ISO9001, IATF16949) certification.
Annual or Quarterly Audits.

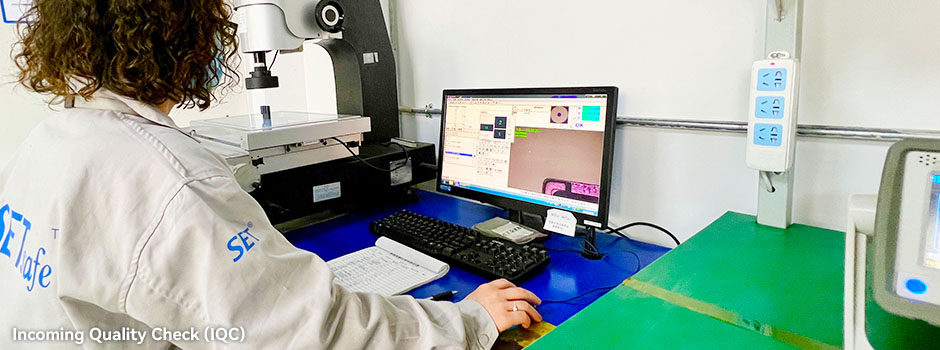

IQC (Incoming Quality Check)
AQL(MIL-STD-105E), Dimensions, Function, Visual Inspection, RoHS & REACH Test.
Document
Formulate corresponding incoming inspection specifications (01-QA-06-xxx) for each key material according to design data such as material technical indicators.
Testing Equipment and Tools
Projector, Tool Microscope, Digital caliper, Salt Spray Tester, Universal Material Testing Machine, Spectrum Analyzer, etc.

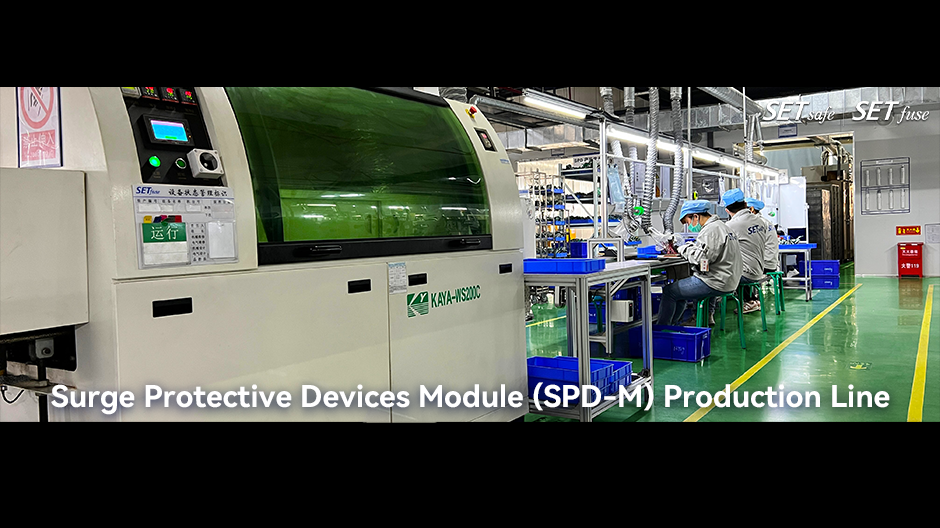

Manufacturing Process
Online Inspection and Testing (Function 100% Testing).
Document
Process Flow Chart.
Failure Mode and Effects Analysis (FMEA).
Quality Control Flow Chart (QCFC).
Standard Inspection Procedure (SIP).
Work Instruction (WI).
Online Testing and Inspection
Static three-parameter detection system.
Resistance test system (100% Testing).
100% Visual Inspection.
etc.
IPQC (In Process Quality Control) Inspection
AQL(MIL-STD-105E), Dimensions Inspection, Function Test, Visual Inspection.
FQC ( Final Quality Control)
AQL(MIL-STD-105E), Dimensions Inspection, Function Test, Visual Inspection, RoHS & REACH Test.
Reliability Test
Test specification (01-TE-01-xxx).
Including 26 items of appearance requirements, electrical performance, mechanical performance, Soldering performance, environmental test and Material performance. e.g.
Voltage Protection Level Up Test.
Limited Current Abnormal Overvoltage Test.
High temperature and high humidity test.
etc.
OQC (Outgoing Quality Control)
AQL(MIL-STD-105E), Packaging, Labeling, Quantity Inspection.
Agency
Agency (Safety Certificate) Annual, Quarterly Audits.
Management System
ISO9001, (TUV approved and issued certificate).
ISO14001, ISO45001, etc.
Click to view the certificate
Environmental
RoHS & REACH Compliant.
SETsafe | SETfuse
Usage
1. Frequency range is from 47 Hz to 63 Hz.
2. The voltage applied continuously to the SPD module must not exceed its maximum continuous operating voltage Uc.
3. When atmosphere press is from 80 kPa to 106 kPa, the related altitude shall be from 2000 meters to - 500 meters.
4. Do not touch the product body or pins directly when power is on, to avoid electric shock.
Replacement
As SPD module is a non-repairable product, for safety sake, please use the same type of SPD module for replacement.
Storage
Do not store SPD module at high temperature, high humidity or corrosive gas environment, to avoid oxidation of the lead wires. Use them up within 1 year after receiving the goods.
Installation Position
Do not install SPD module to the place that may suffer severe vibration.

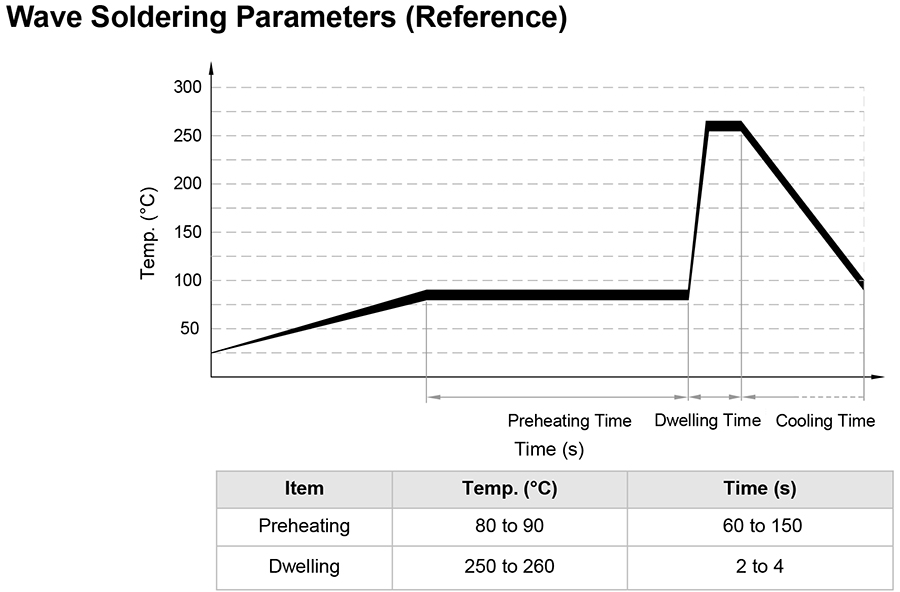

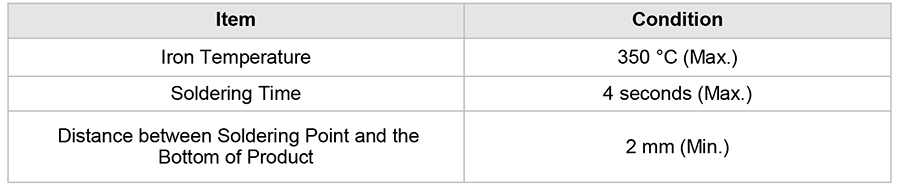

Recommended Hand-Soldering Parameters
Note:
The wave soldering parameters are for reference only. Before SPD module is for practice usage, relative validation is recommended.
