Surge Protective Devices Module (SPD-M)
  • Surge Protective Devices Module (SPD-M)
  • SM34SxxxP1 series×
SM34SxxxP1 series

Max. Continuous Operating Voltage (Uc): 30 ~ 460 VAC

Nominal Discharge Current (In)(8/20 μs): 10 ~ 20 kA

Max. Discharge Current (Imax)(8/20 μs): 20 ~ 40 kA

Protection Mode: 1+1 (L - N, N - PE) / (+ - -, - - PE)

Datasheet

2024-2026 Year Version.

When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.

SPD-M SM34SxxxP1_SETsafe & SETfuse.pdf


2021-2023 Year Version.

While purchasing 2021-2023 version products, please refer to the data below.

SPD-M_SM34SxxxP1_SETsafe & SETfuse.pdf


Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Manufacturer

Xiamen SET Electronics Co., Ltd.

Features

● High Reliability

● Small Size

● Combination Technology of ATCO, MOV and GDT

● RoHS & REACH Compliant

Mounting Style

Through Hole

3D of Product Structure

You can download the 3D diagram of product structure to help you improve design efficiency to create more great products.

SM34SxxxP1 series_3D_SPD-M_SETsafe & SETfuse.zip

Applications

● Telecom Equipment

● AC / DC Power Supply

● Uninterruptable Power Supply (UPS)

● Surge Protective Device (SPD)

Technology Applications Markets Applications

Design Standards & Agency Approvals

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com


TUV (Germany):

Standards: EN 61643-11

File No.: J50369231

TUV_SPD-M_SM34SxxxP1_SETsafe & SETfuse.pdf

Quality Assurance

SPD-M Quality Assurance

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.


Quality Policy.


Qualified Supplier of Raw Materials.


Incoming Quality Control (IQC):

Acceptance Quality Limit (AQL), Dimension, Function, Visual Inspection, RoHS & REACH Test. etc..


Process:

Online Inspection and Function Test 100%, etc..


In Process Quality Cortrol (IPQC): AQL, Dimension, Function, Visual Inspection, etc..


Final Quality Control (FQC):

AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test, etc..


Reliability Test:

AQL Sampling Test.


Outgoing Quality Control (OQC):

Packaging, Labeling, Quantity Inspection, etc..


Agency Information:

Safety Certificate Agency Annual, Quarterly Audits. Include UL, cUL, VDE, TUV, KC, PSE, CCC. etc..


Quality Management System:

TUV Approved and Issued Certificate.

Brand

SETsafe | SETfuse


Brand Story.png

Overview

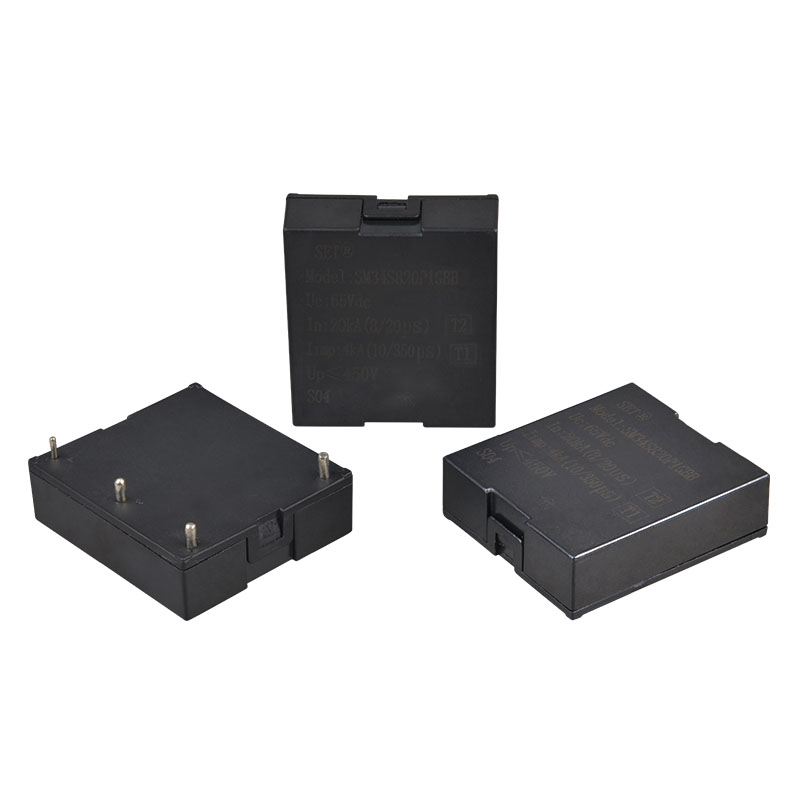

Surge protective device module (SPD-M) is an onboard lightning protection module that integrates functions, such as thermal protection, overvoltage protection, and remote signaling, and others. A single module can meet common-mode, differential-mode or full-mode protection requirements.SPD-M, an integrated solution, can simplify the design and selection of surge protection modules for users, and is suitable for surge protection of low-voltage AC or DC power supply equipment. Surge protective device module (SPD-M) has the characteristics of small board space, high level of integration, and complete protection functions and solutions.
