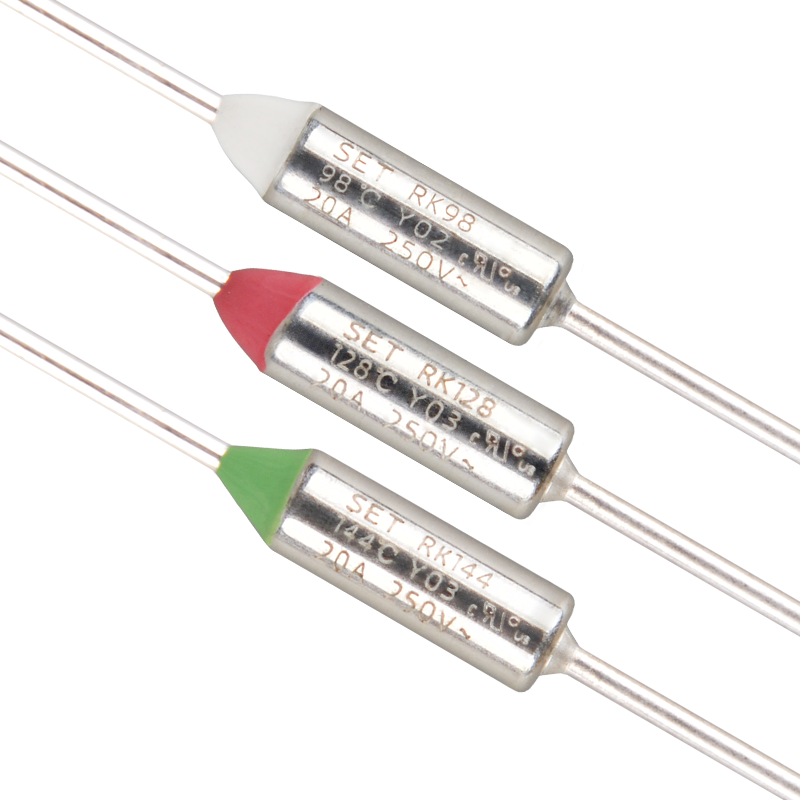

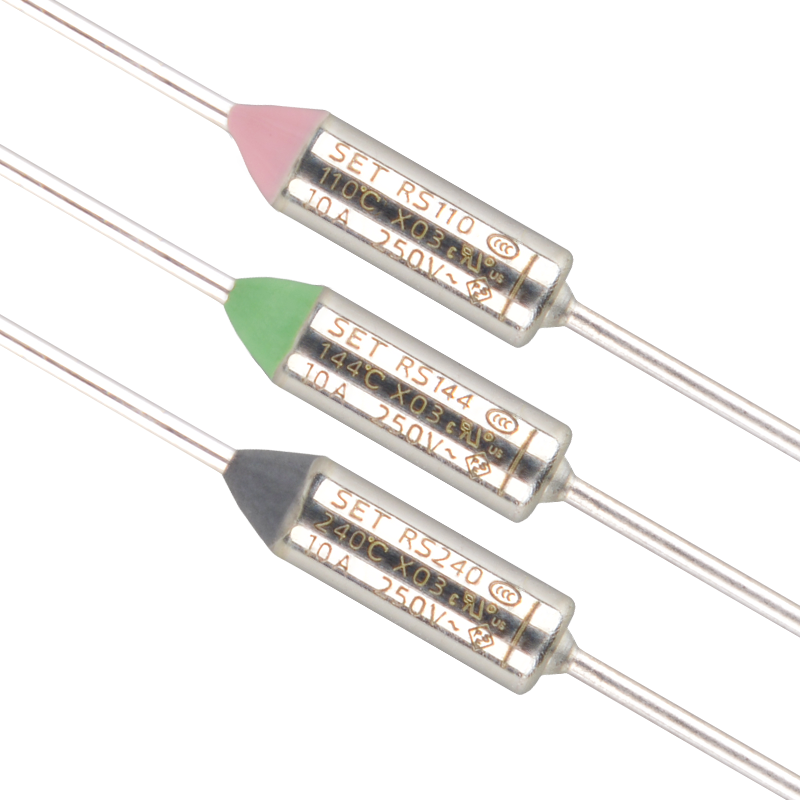

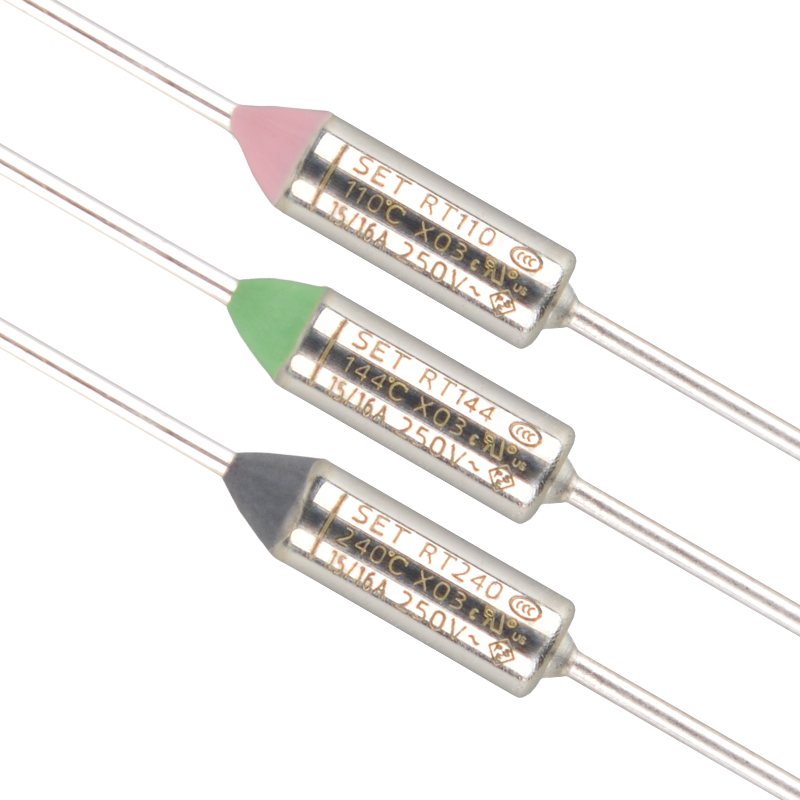

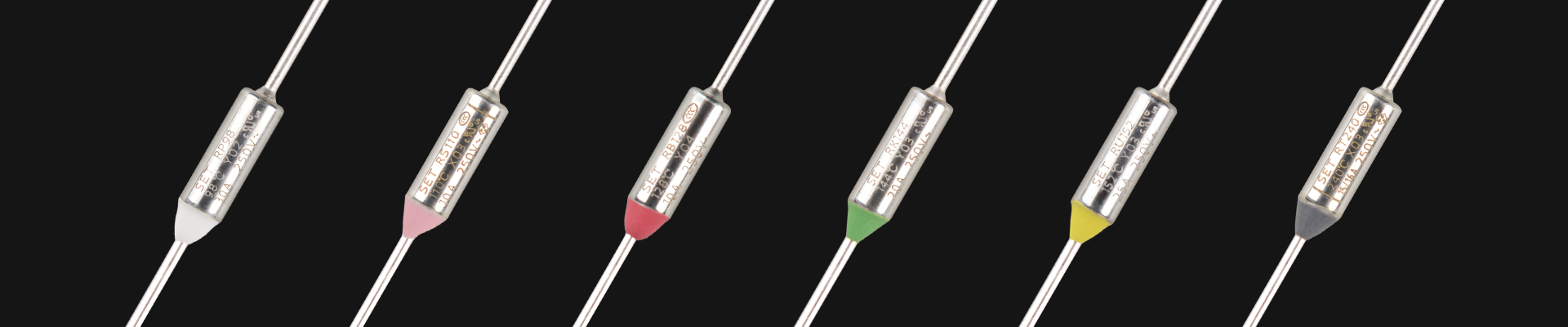

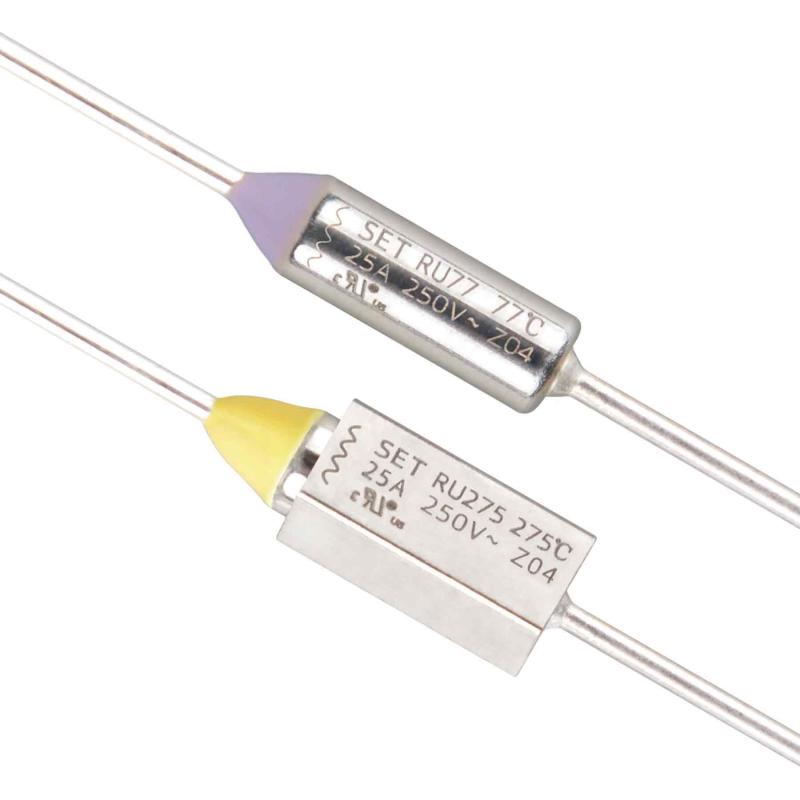

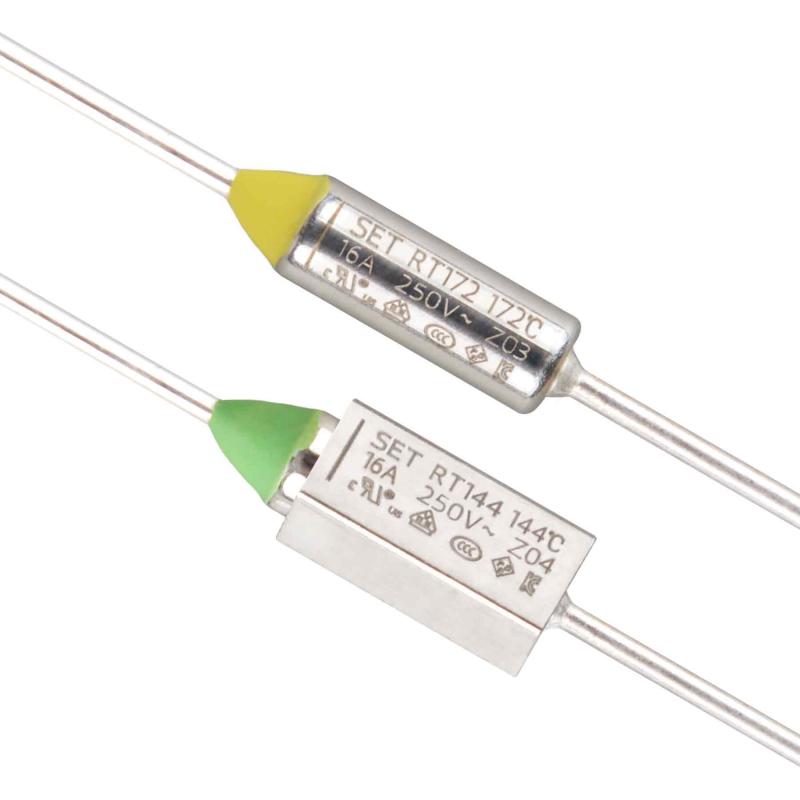

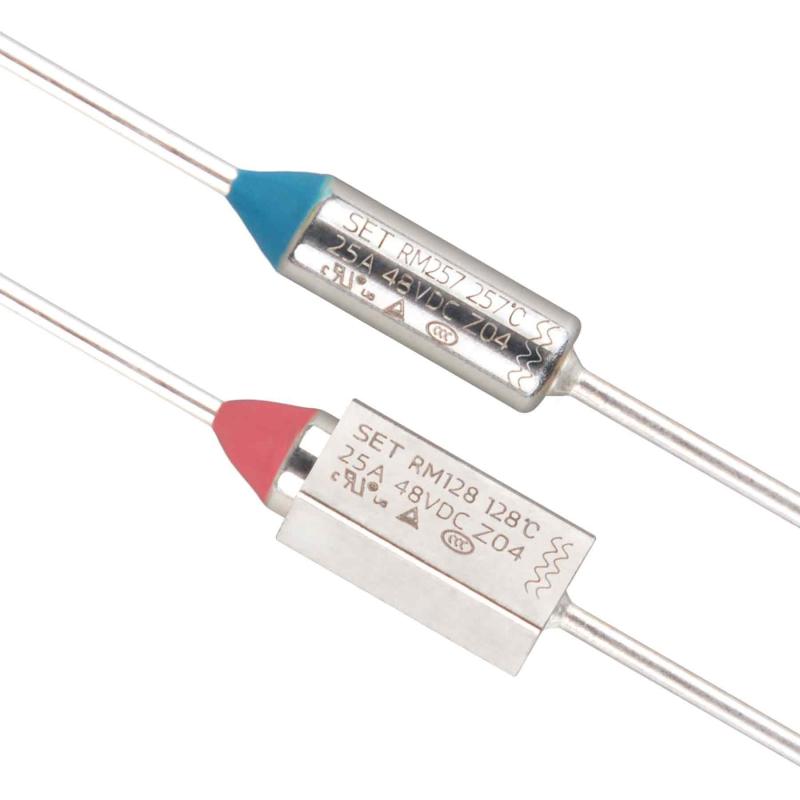

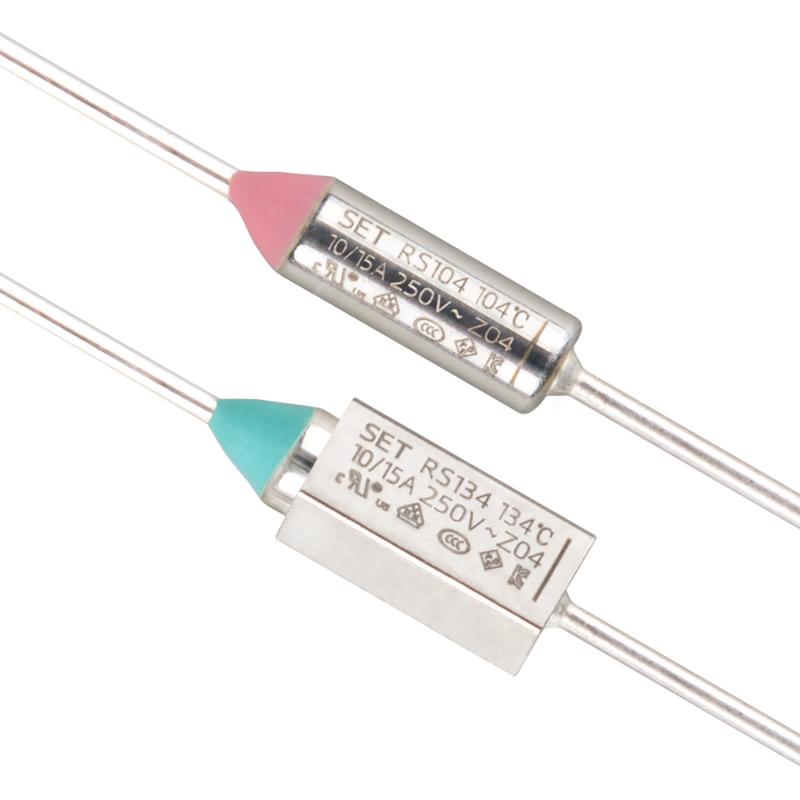

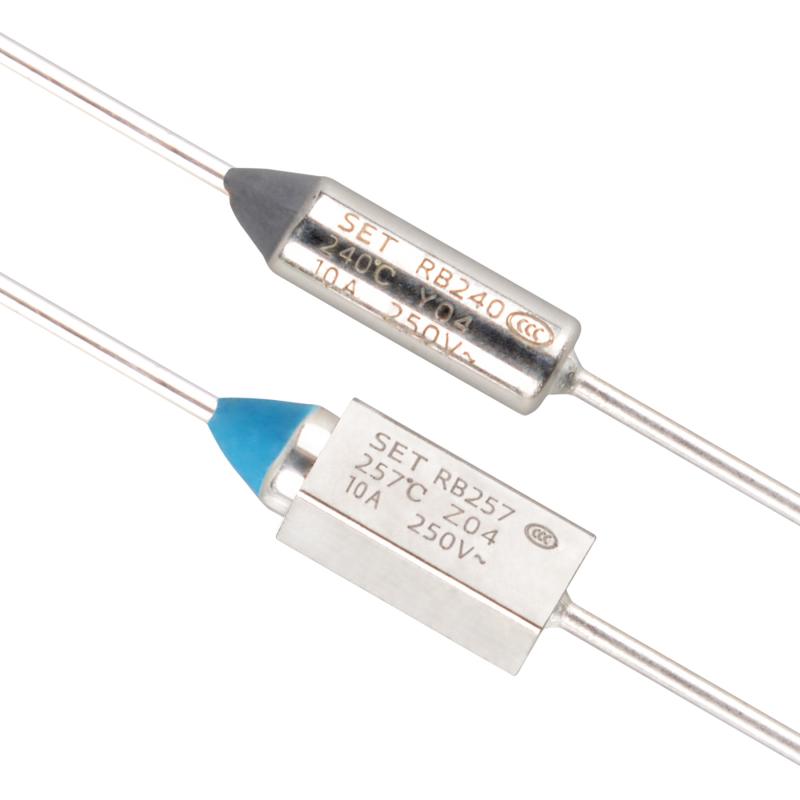

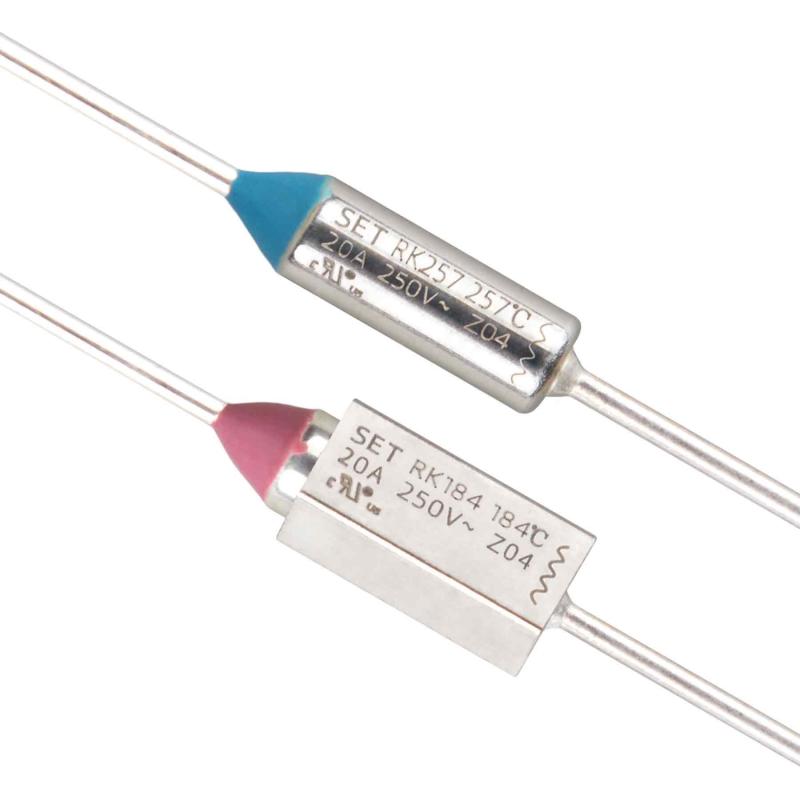

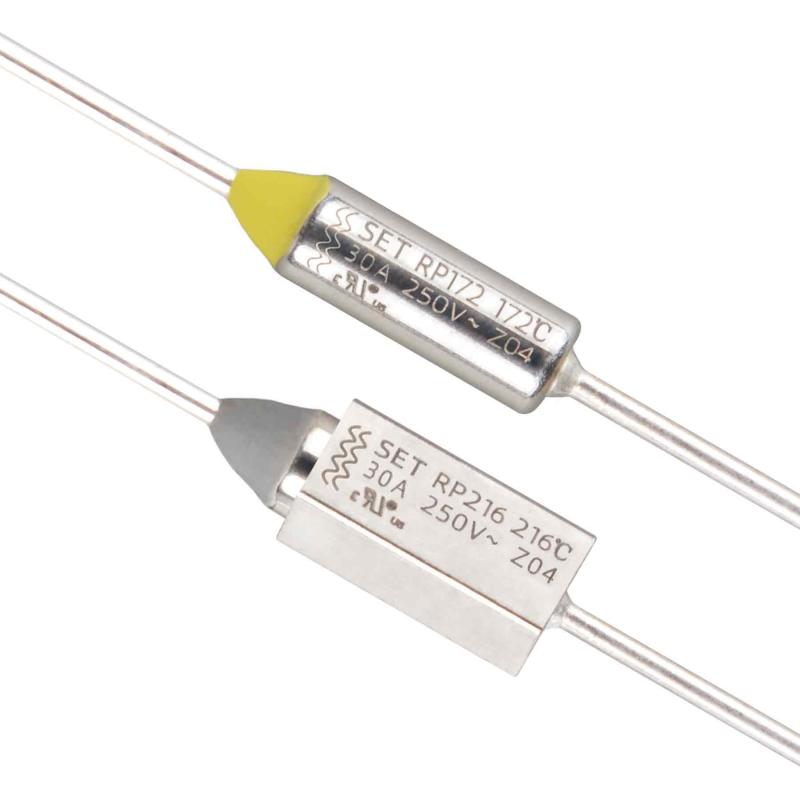

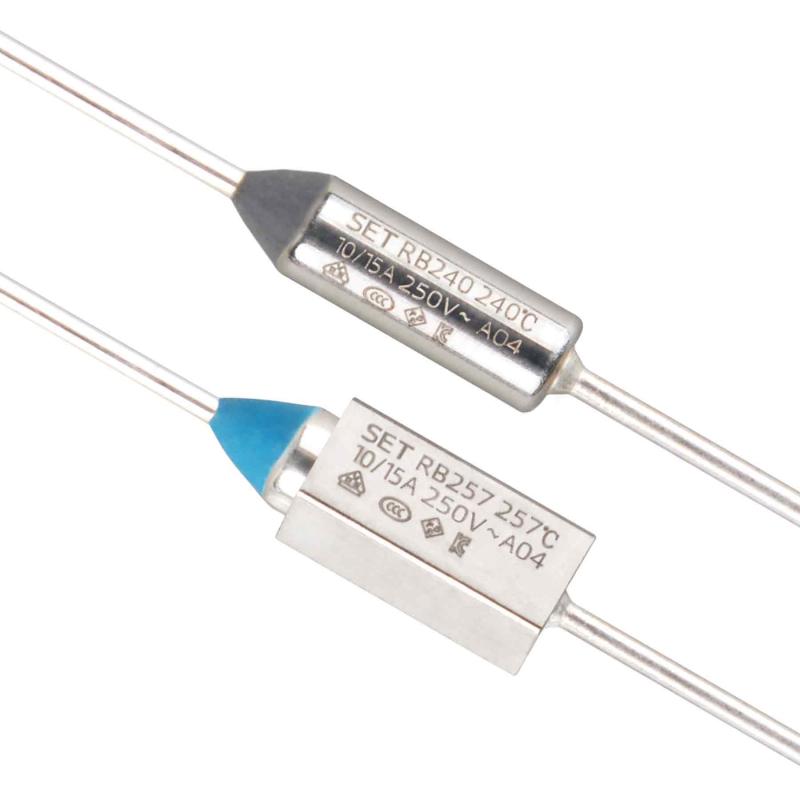

SETsafe | SETfuse Organic Thermal-Link (OTCO) is a non-resettable protective device, functioning one time only. It mainly consists of metal case, spring, sliding contact and thermal pellet. The organic thermal pellet responds to abnormal temp. situation and triggers the cutoff function.

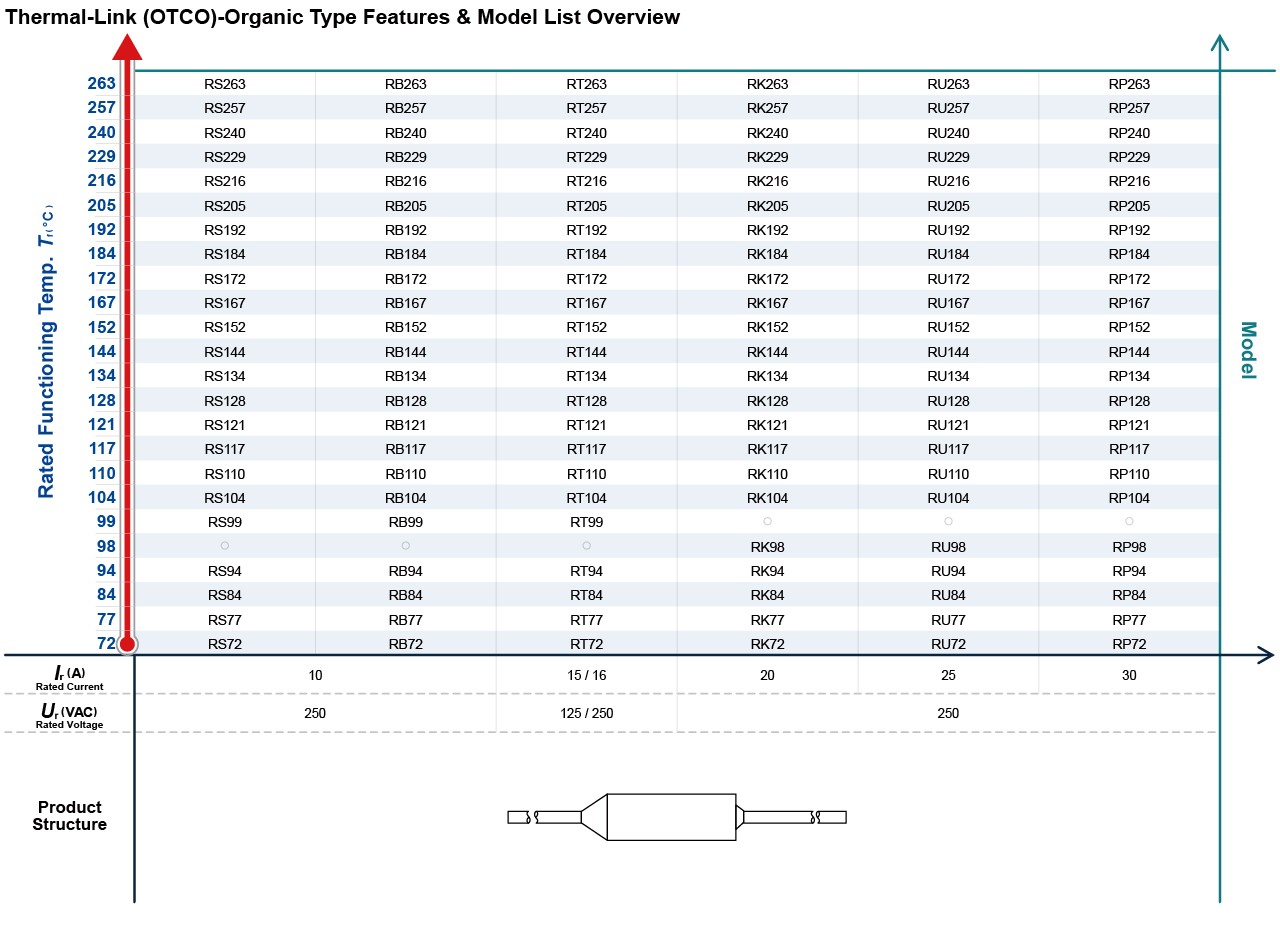

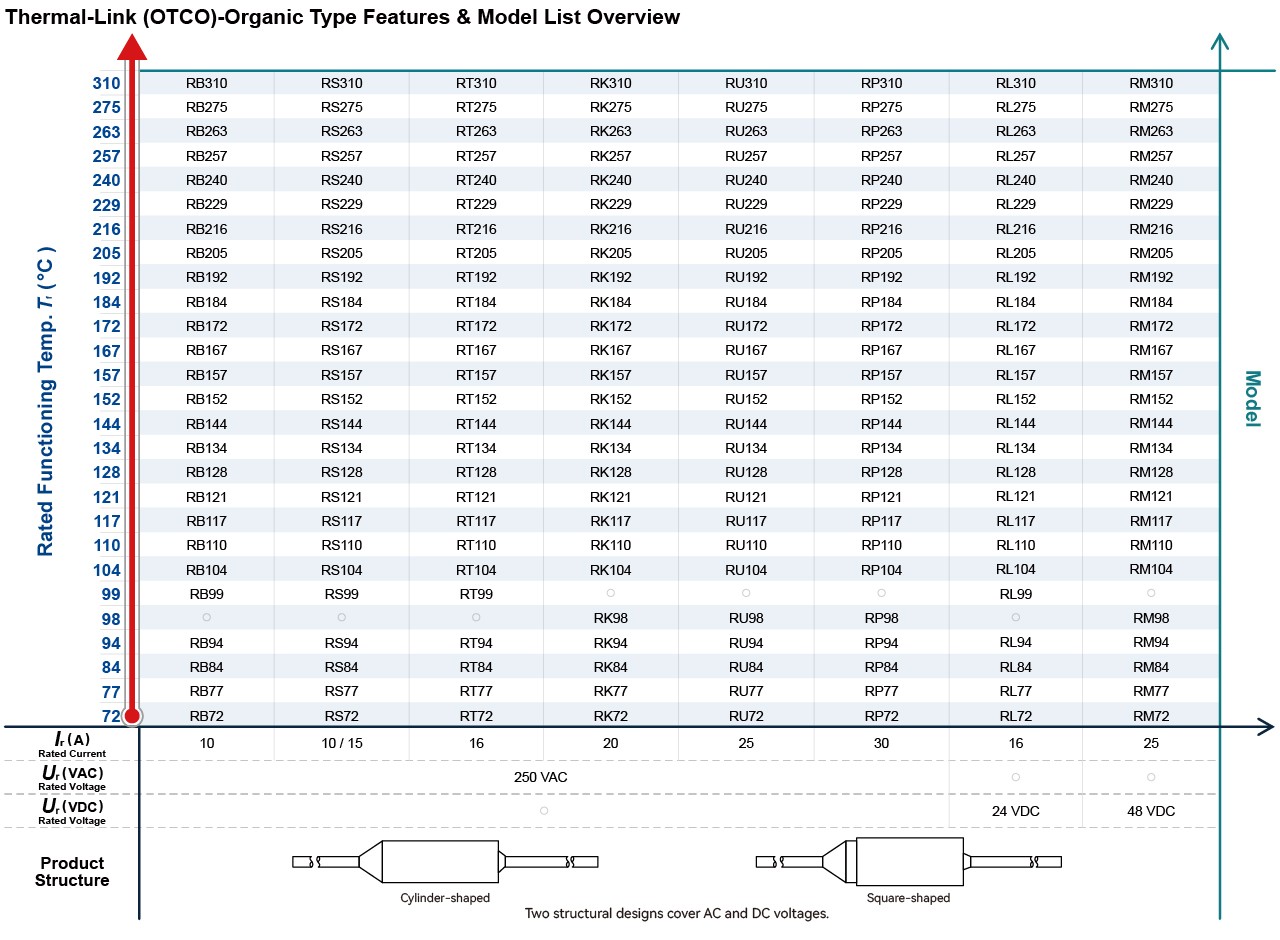

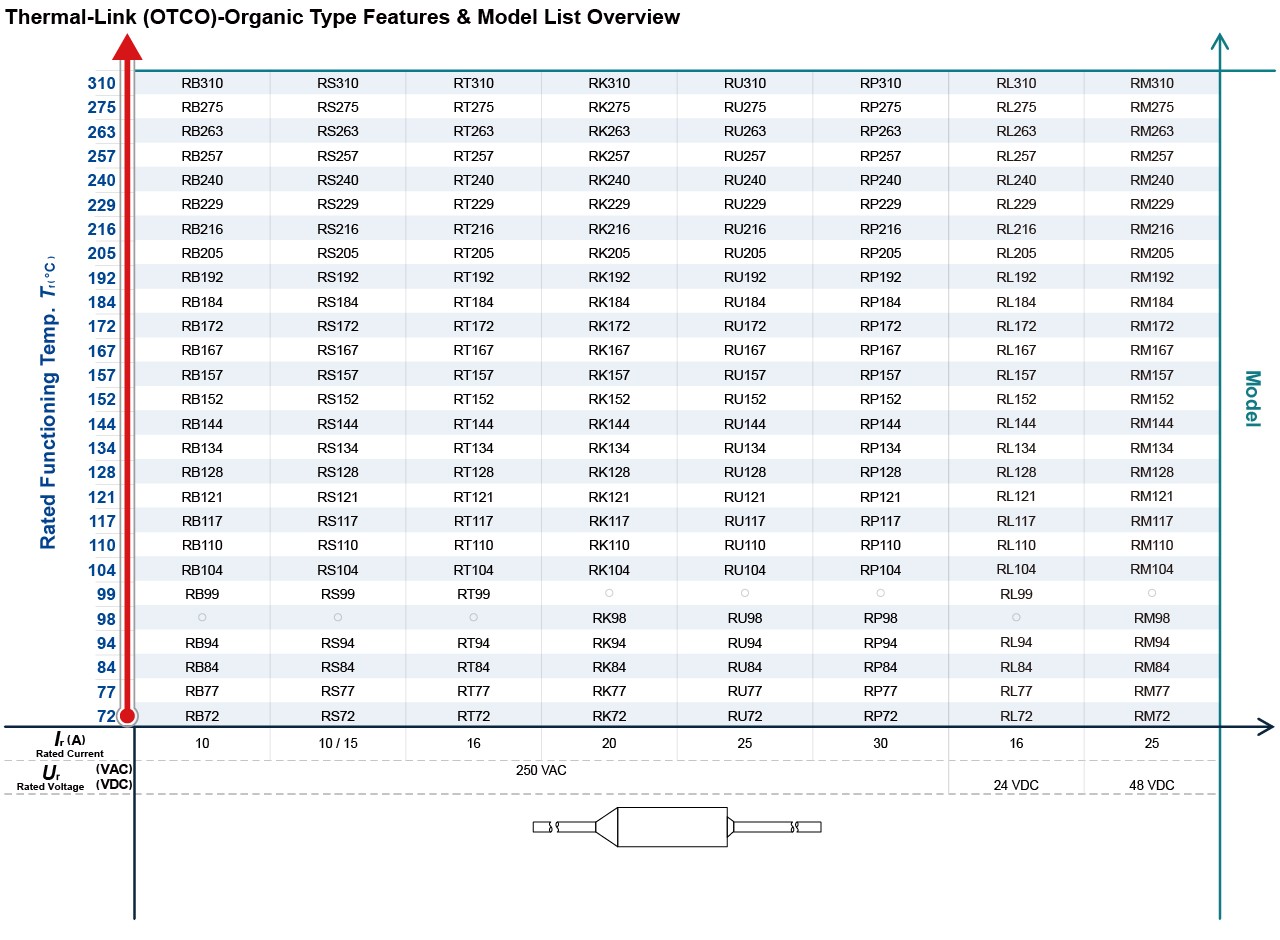

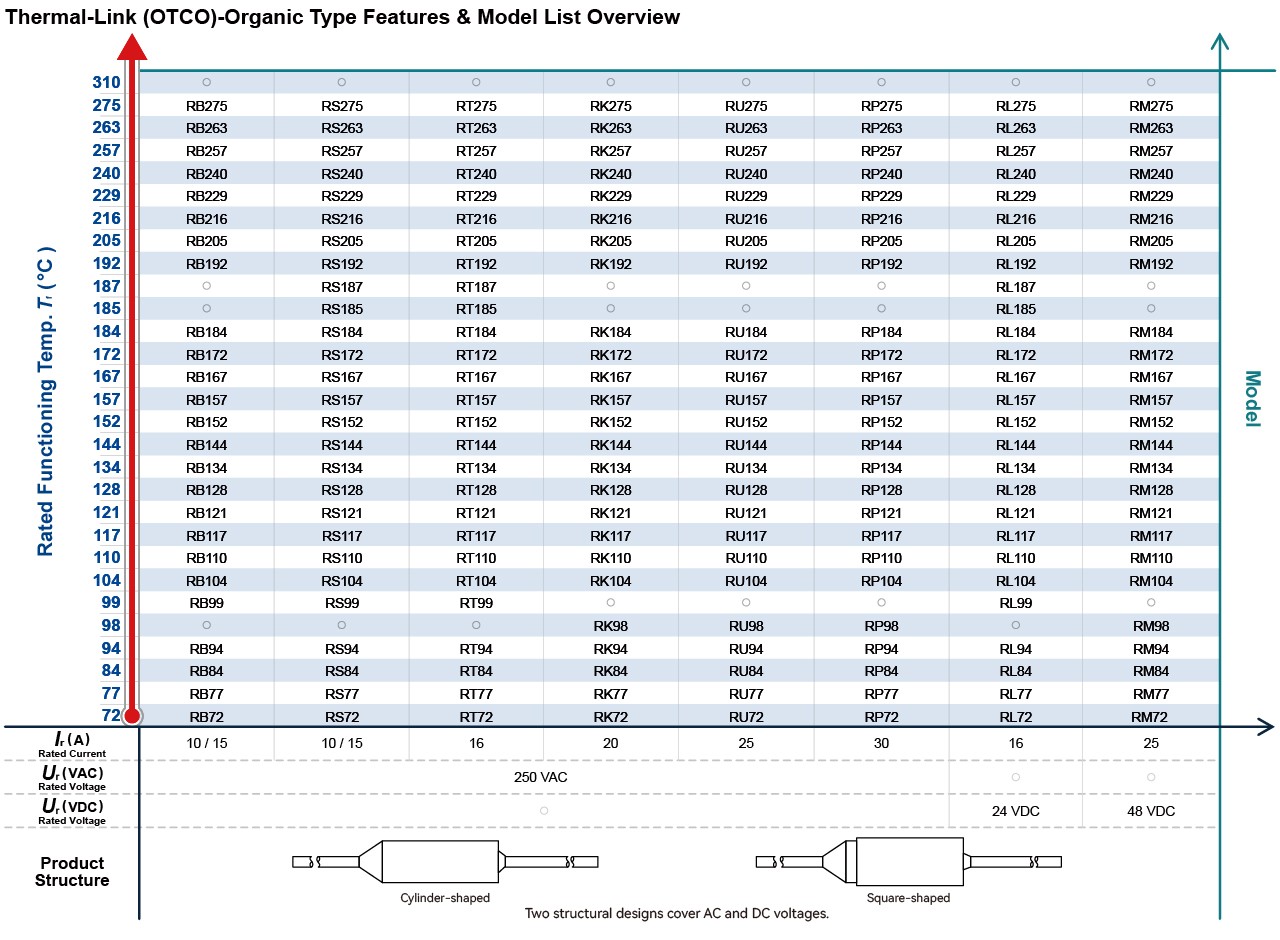

SETsafe | SETfuse Organic Thermal-Link (OTCO) is widely used in electrical equipment to provide over temp. protection, it has wide range of operating temp., from 72 °C to 263 °C, rated current includes: 10 A, 15 A / 16 A. With UL, cUL, VDE, CCC, KC, PSE certificates, comply with RoHS and REACH.
TCO
Thermal-Link
A non-resettable device incorporating a THERMAL ELEMENT which will open a circuit once only when exposed for a sufficient length of time to a temp. in excess of that for which it has been designed.
OTCO
Organic Thermal-Link
Organic type Thermal-Link, Organic is the THERMAL ELEMENT.
Tf
Rated Functioning Temp.
The temp. of the Thermal-Link which causes it to change its state of conductivity with a detection current up to 10 mA as the only load.
Tolerance: Tf + 0 / - 10 K (GB/T 9816, EN60691, UL60691, KC60691).
Tolerance: Tf ± 7 K (J60691).
Fusing Temp.
The temp. of the Thermal-Link which causes it to change its state of conductivity is measured with silicone oil bath in which the temp. is increased at the rate of 0.5 K/min to 1 K/min, with a detection current up to 10 mA as the only load.
Th
Holding Temp.
The max. temp. of the Thermal-Link at which it will not change its state of conductivity during 168 hours at the rated current.
Tm
Max. Temp. Limit
The temp. of the Thermal-Link stated by the manufacturer, up to which the mechanical and electrical properties of the Thermal-Link, having changed its state of conductivity, will not be impaired for a given time.
Ir
Rated Current
The current used to classify a Thermal-Link.
Ur
Rated Voltage
The voltage used to classify a Thermal-Link.
In
Nominal Discharge Current
Being able to withstand 15 peak currents of waveform 8/20 μs to test the product′s durability of withstanding pulse current
Imax
Max. Discharge Current
Being able to withstand 1 peak current of waveform 8/20 μs to test max. pulse current that the product can withstand.
Small Home Appliances
Electric Cooker, Bread Maker, Coffee Machine, Soymilk Machine, etc.
Comfort Home Appliances
Washing Machine, Refrigerator, Air Conditioner, etc.
Personal Care Appliances
Hair Dryer, Hair Straightener, Electric Iron, etc.
Commercial Appliances
Printer, Scanner, Fax Machine, etc.
Automobile Field
Air Conditioner, Heated Seat, etc.
SETsafe | SETfuse Quality Policy
Provide Industry-Leading Products
Raw-materials Supplier
Select critical raw materials: Must be from a manufacturer with quality management system (ISO9001, IATF16949) certification.
Annual or Quarterly Audits.

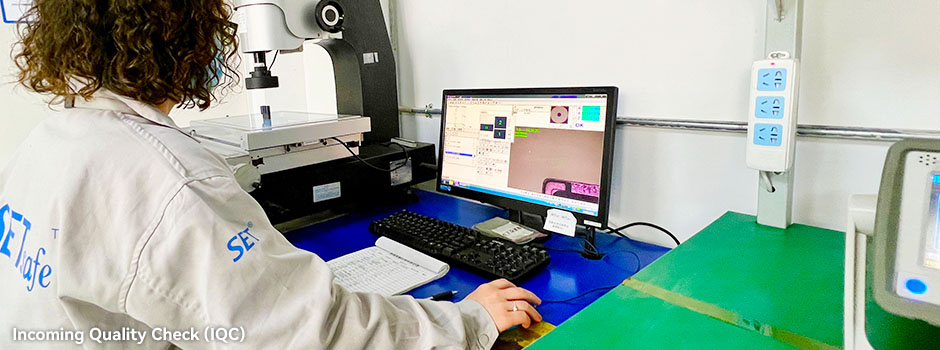

IQC (Incoming Quality Check)
AQL(MIL-STD-105E), Dimensions, Function, Visual Inspection, RoHS & REACH Test.
Document
Formulate corresponding incoming inspection specifications (01-QA-06-xxx) for each key material according to design data such as material technical indicators.
Testing Equipment and Tools
Projector, Tool Microscope, Salt Spray Tester, Universal Material Testing Machine, Spectrum Analyzer, etc.
Manufacturing Process
Online Inspection and Testing (Function 100% Automatic Testing).
Document
Process Flow Chart.
Failure Mode and Effects Analysis (FMEA).
Quality Control Flow Chart (QCFC).
Standard Inspection Procedure (SIP).
Work Instruction (WI).

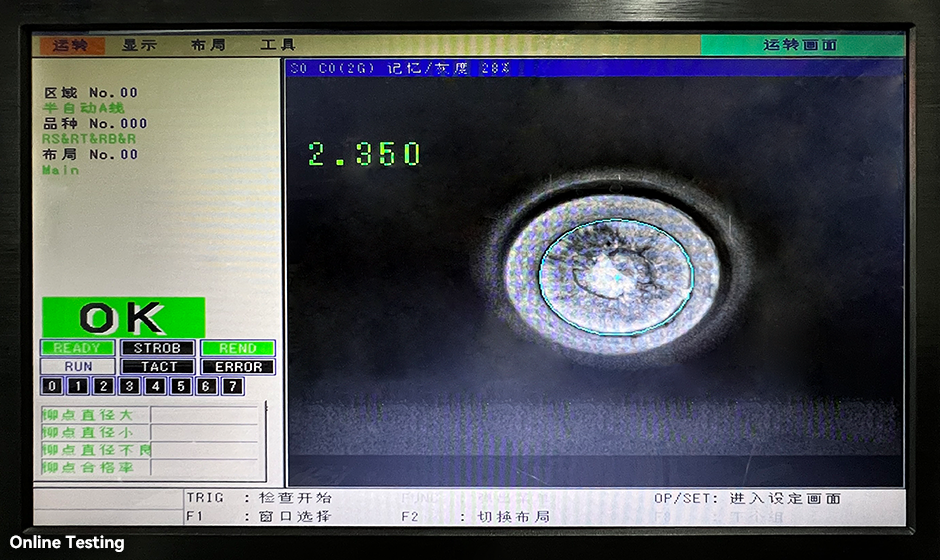

Online Testing and Inspection
Resistance test system (100% Automatic Testing).
100% Visual Inspection.
etc.
IPQC (In Process Quality Control) Inspection
AQL(MIL-STD-105E), Dimensions Inspection, Function Test, Visual Inspection.
FQC ( Final Quality Control)
AQL(MIL-STD-105E), Dimensions Inspection, Function Test, Visual Inspection, RoHS & REACH Test.
Reliability Test
Test specification (01-TE-01-1002-xxx)
Including 30 items of Mark Indelibility Performance, Mechanical Performance, Electrical Performance, Temperature Test, Soldering Performance Test，Environmental Test and Life Test. e.g.
Interrupting Current Test.
Dielectric Strength.
Maximum Temperature Limit Test.
Ageing Test.
etc.
OQC (Outgoing Quality Control)
AQL(MIL-STD-105E), Packaging, Labeling, Quantity Inspection.
Agency
Agency (Safety Certificate) Annual, Quarterly Audits.
Management System
ISO9001, (TUV approved and issued certificate).
ISO14001, ISO45001, etc.
Click to view the certificate
Environmental
RoHS & REACH Compliant.
SETsafe | SETfuse
Usage
1. Please use OTCO without exceeding the rated current and voltage.
2. Do not use the OTCO in environments out of the standard specifications, such as those containing sulfur dioxide gas, nitrogen oxide gas, ammonia gas or formic acid. It is also not suitable for using in high humidity environment or immersed in liquid.
Replacement
OTCO is a non-repairable product. For safety aspect, it shall be replaced by an equivalent OTCO from the same manufacturer, and mounted in the same way.
Storage
1. OTCO must be kept in a place with no sunshine and no corrosive gas, with temp. shall be -10°C ~ 35°C and humidity within 30% ~ 70%. The validity storage period of OTCO is 12 months after purchase.
2. The case and isolated lead of OTCO are silver-plated. Therefore, to avoid vulcanization, the OTCO shall not be kept around materials such as cardboard or rubber etc. which generate sulfurous acid gas.
Lead Process
1. If lead wires has to be bent, it is important not to apply excessive pressure to the root of the lead wires. The tensile forces applied to the lead wires shall not exceed 15.7N, and the thrust force applied to the lead wires shall not exceed 3.9N.

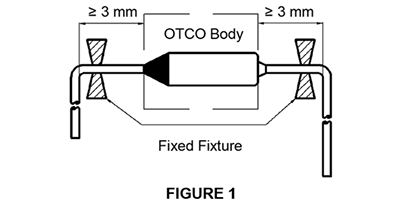

2. The lead wires should be bent at a distance 3 mm or above from the body of OTCO (see Fig.1).
3. To avoid damaging the OTCO, when bending lead wires, please use pincher or similar tools to fix the OTCO.
Installation
Selection of Installation Location
1. Do not locate the OTCO in a place where severe vibration always occurs.
2. The infrared thermography or multiple thermocouples should be considered to detect the ambient temp. under normal and abnormal situation. The point that provides the biggest temp. rise between these two situations is the best installation location.
Make Sure the Temp. of Installation Location
1. The body of OTCO will generate heat as current flows through it, resulting the body temp. higher than ambient temp. The influence of temp. rise shall be considered in the design to determine the appropriate OTCO model.
2. It shall be ensured that the body temp. of OTCO and the ambient temp. at the installation position do not exceed the corresponding holding temp. Th.
3. The end product should be tested to ensure that potential abnormal conditions do not cause ambient temp. to exceed the Tm of the OTCO.
Mounting OTCO
1. OTCO can be installed by soldering, welding, riveting or crimping. During and after installation, please do not pull, push or twist OTCO body or lead wires.

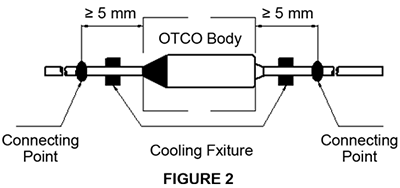

2. The connection point of the lead shall be less than 5 mm away from the OTCO body (see Fig.2).
3. Try to ensure that the body of the OTCO is evenly heated. If the temp. difference is inevitable, make sure that the sealing resin side be connected closer to the heat source.
Soldering
1. Soldering should be carried out according to below table. If secondary soldering is required, wait until the OTCO cools to room temp.
2. Soldering is not recommended for Thermal-Link with Tf ≤ 110°C, while non heating processes such as crimping and riveting are recommended.
3. In the process of soldering, cooling fixture should be used between soldering point and OTCO body (see Fig.2).
4. It is recommended to take X-ray after soldering, to confirm that the thermal pellet has no shrinkage after soldering.

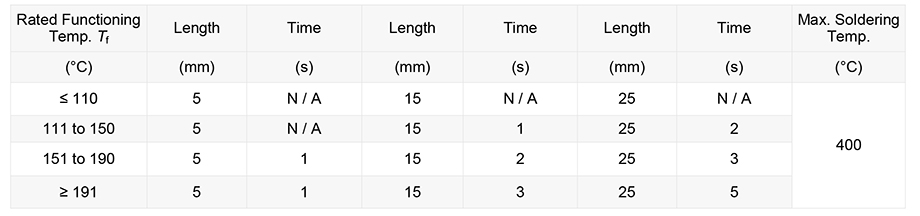

TABLE 1: Max. Allowable Soldering Time for Different Length of Soldering Point from OTCO Body
Welding
1. Avoid welding current flowing into the inside of the OTCO. The welding current will cause the internal parts to be welded together, resulting in the failure function of OTCO.
2. During the welding process, the lead wires of the OTCO must be supported to avoid the damage of the OTCO.
3. In the process of welding, cooling fixture should be used between welding point and OTCO body (See Fig.2).
4. It is recommended to take X-ray after welding, to confirm that the thermal pellet has no shrinkage after welding.
Riveting or Crimping
1. Select materials with low resistivity (such as copper) for riveting and crimping.
2. Contact resistance shall be as small as possible. Large contact resistance will cause high temp. to make OTCO open in advance.
3. It is better to crimp OTCO leads to stranded lead wires rather than solid wires as the stranded wire may be crimped tighter and maintain better electrical contact during temp. cycling.
4. During the riveting and crimping process, ensure that the lead wires shall not be reversed, sealing resin shall not be destroyed.
5. When the working temp. exceeds 150°C, soldering reinforcement it recommended after riveting and crimping.

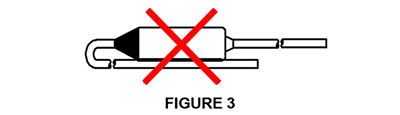

The isolated lead is forbidden to contact OTCO body directly to avoid short circuit (See Fig.3).
Learn more
Click "Learn more" to jump to the Product Catalog (Datasheet) download page to download and read.
