LV Fuses for ESS (Energy Storage System)

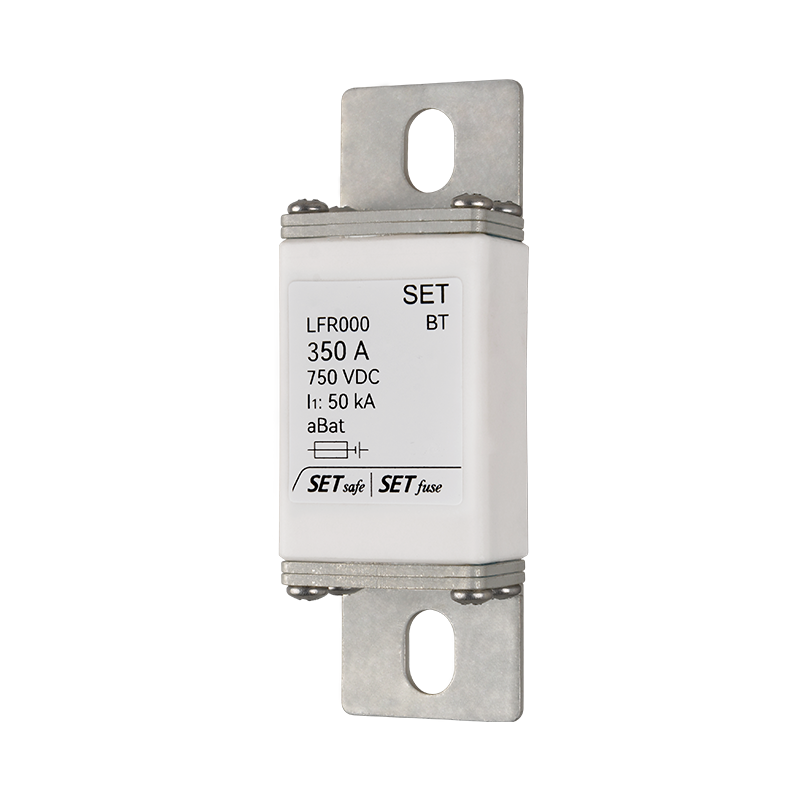

LFR000-xxxA07-BT series×

LFR000-xxxA07-BT series

Rated Voltage (Un): 750 VDC

Rated Current (In): 50 ~ 350 A

Breaking Capacity: 50 kA

Utilization Category: aBat

Datasheet
Manufacturer
Features
Mounting Style
Termination Style
Applications
Design Standards & Agency Approvals
Customization
Quality Assurance
Brand
Tradename
Overview
About SETsafe | SETfuse

Datasheet

2024-2026 Year Version.

LV Fuses LFR000-xxxA07-BT(750 VDC, 50~350 A)_SETsafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Manufacturer

Xiamen SET Electronics Co., Ltd.

Features

● Rated Voltage: 750 VDC

● Breaking Capacity: 50 kA

● Fusing Characteristics: High Speed Fuse

● Utilization Category: aBat

● Good Current Limiting Capability

● Body Size: 58 x 36 x 24 mm (000#)

● RoHS and REACH Compliant, Pb Free

Mounting Style

Bolt Tag

Termination Style

Bolt down

Applications

● Power conversion devices

● DC systems

● Energy Storage System (ESS)

● DC Charging Pile

Design Standards & Agency Approvals

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com

Standards: UL 248-13

cUL

Standards: UL 248-13

TUV

Standards: EN IEC 60269-7

Customization

If you want to customize the product, please communicate with SETsafe ｜SETfuse.

Quality Assurance

High Quality, High Reliability.

Brand

SETsafe | SETfuse

Tradename

SET

Overview

A low-voltage fuse is an overcurrent protection device designed for low-voltage electrical systems (typically defined as less than 1000 VAC or 1500 VDC). Its primary function is to interrupt fault currents during an overload or short-circuit event by melting its internal element, thereby preventing equipment damage or fire hazards. They are widely applied in all electrical and electronic systems requiring overcurrent protection, such as industrial power distribution systems, household appliances, automotive electronics, and new energy applications.
