LV Fuses for ESS (Energy Storage System)
  • LV Fuses for ESS (Energy Storage System)
  • LFR1-xxxA02-BB series×

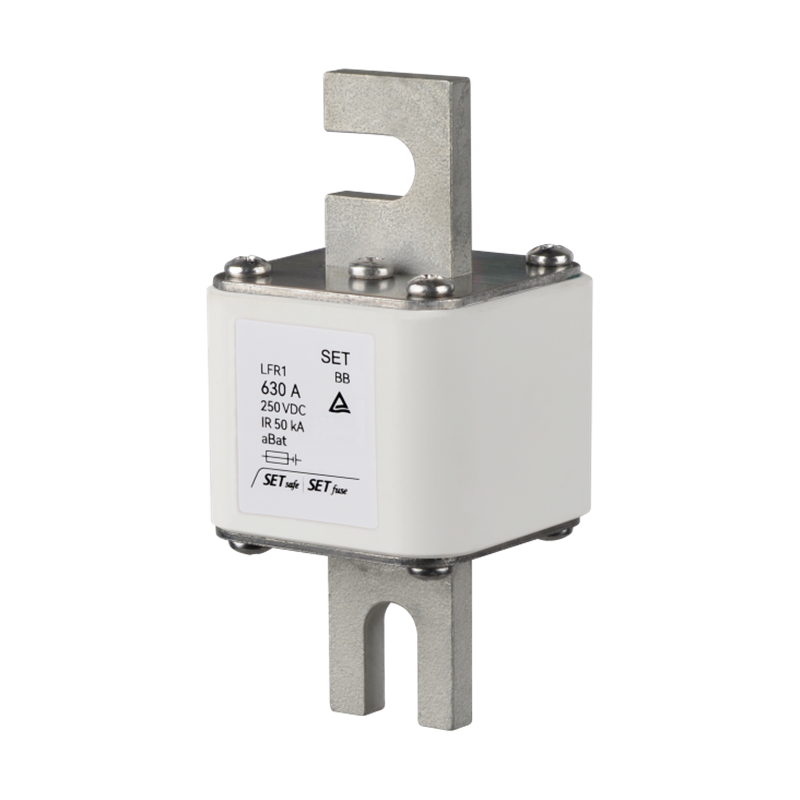

LFR1-xxxA02-BB series

Rated Voltage (Un): 250 VDC

Rated Current (In): 200 ~ 800 A

Breaking Capacity: 50 kA

Utilization Category: aR & aBat

Datasheet

2024-2026 Year Version.

LV Fuses LFR1-xxxA02-BB(250 VDC, 200~800 A)_SETsafe & SETfuse.pdf


Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Manufacturer

Xiamen SET Electronics Co., Ltd.

Features

● Rated Voltage: 250 VDC

● Breaking Capacity: 50 kA

● Fusing Characteristics: High Speed Fuse

● Utilization Category: aR / aBat

● Good Current Limiting Capability

● Body Size: 50 x 51 x 51 mm (1#)

● RoHS and REACH Compliant, Pb Free

Mounting Style

Bolt Blade

Applications

● Energy Storage System (ESS)

Design Standards & Agency Approvals

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com


TUV

Standards: EN IEC 60269-7

File No.: R 50609844

TUV_LFR1-xxxA02-BB_SETsafe & SETfuse.pdf

Customization

If you want to customize the product, please communicate with SETsafe |SETfuse.

Quality Assurance

High Quality, High Reliability.
