Thermal-Link & Fusing Resistor (TRXF)(5)

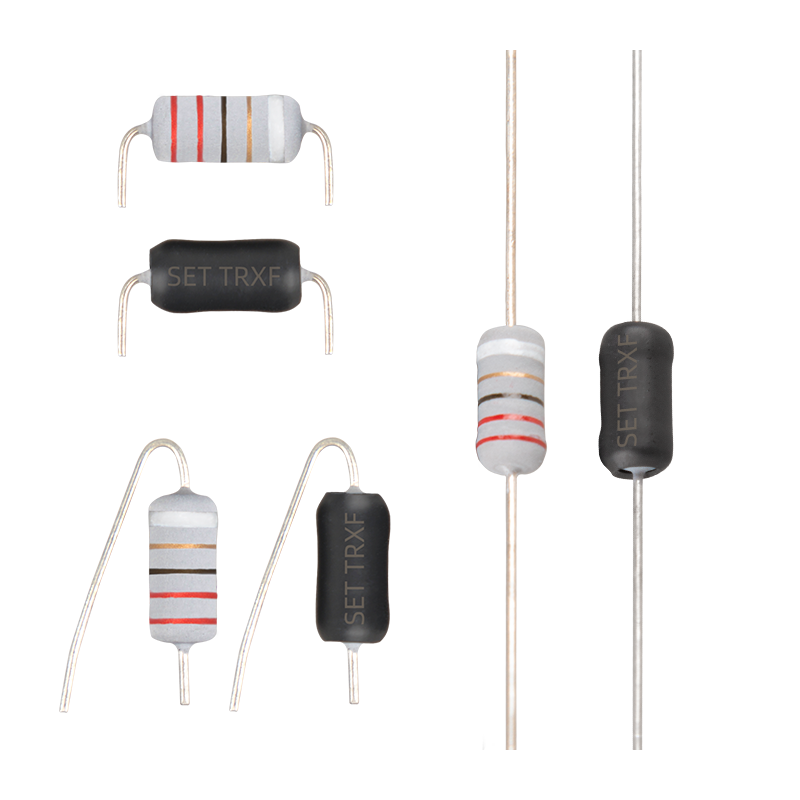

Thermal-Link & Fusing Resistor (TRXF) is an unique type of Power Resistor, with Over Temp. and Over Current Protections. The Alloy Thermal-Link (ATCO) is built in the core of Fusible Wirewound Resistor (RXF) and in series with RXF. SETsafe | SETfuse TRXF has the same physical size as ordinary RXF as well as large fault current protection. Besides, TRXF can effectively solve the hidden danger of continuous abnormal heat that ordinary RXF may cause when small fault current happens.
Thermally Protected Resistor (TPR)(3)
Thermally Protected Resistor (TPR) is an unique type of Power Resistor, with Over Temp. and Over Current Protections. Thermally Protected Resistor (TPR) is a type of power resistor, where Alloy Thermal-Link (ATCO) and Fusible Wirewound Resistor (RXF) are in series encapsulated in a ceramic case with silicone cement. SETsafe | SETfuse TPR has the same physical size as ordinary ceramic resistor while additionally providing fault current protection. TPR can also effectively protect against the damages to devices & equipment, caused by continuous heat dissipations by ceramic resistors due to fault currents.
Low Voltage Fuses (LV Fuses)(28)
Power Type (P): 1 W
Rated Resistance (R): 0.27 ~ 800 Ω
Resistance Tolerance: 5% / 10%
Rated Functioning Temp. (Tf): 221 ℃
2024-2026 Year Version.
When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.
TRXF_TRXF1(Axial)_SETsafe & SETfuse.pdf
2021-2023 Year Version.
While purchasing 2021-2023 version products, please refer to the data below.
TRXF TRXF1 (Axial Type)_SETsafe & SETfuse.pdf
Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.
Xiamen SET Electronics Co., Ltd.
Thermal-Link & Fusing Resistor (TRXF) is an unique type of Power Resistor, with Over Temp. and Over Current Protections. The Alloy Thermal-Link (ATCO) is built in the core of Fusible Wirewound Resistor (RXF) and in series with RXF.
SETsafe | SETfuse TRXF has the same physical size as ordinary RXF as well as large fault current protection. Besides, TRXF can effectively solve the hidden danger of continuous abnormal heat that ordinary RXF may cause when small fault current happens.
● Patented Product
● Over Temp. Protection
● Surge Protection
● Inrush Current Protection
● Small Fault Current Protection
● Short Circuit Protection
● RoHS & REACH Compliant
