Thermal-Link & Fusing Resistor (TRXF)
  • Thermal-Link & Fusing Resistor (TRXF)
  • TRXF2 (Axial Type) series×

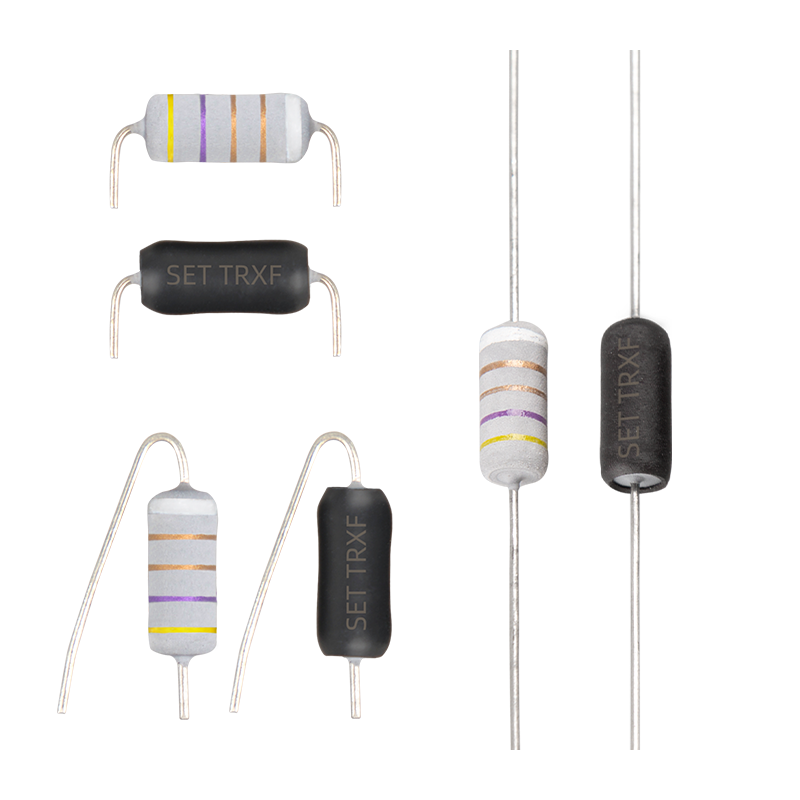

TRXF2 (Axial Type) series

Power Type (P): 2 W

Rated Resistance (R): 0.27 ~ 1000 Ω

Resistance Tolerance: 5% / 10%

Rated Functioning Temp. (Tf): 221 ℃

Datasheet

2024-2026 Year Version.

When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.

TRXF_TRXF2(Axial)_SETsafe & SETfuse.pdf


2021-2023 Year Version.

While purchasing 2021-2023 version products, please refer to the data below.

TRXF TRXF2 (Axial Type)_SETsafe & SETfuse.pdf


Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Manufacturer

Xiamen SET Electronics Co., Ltd.

Technology

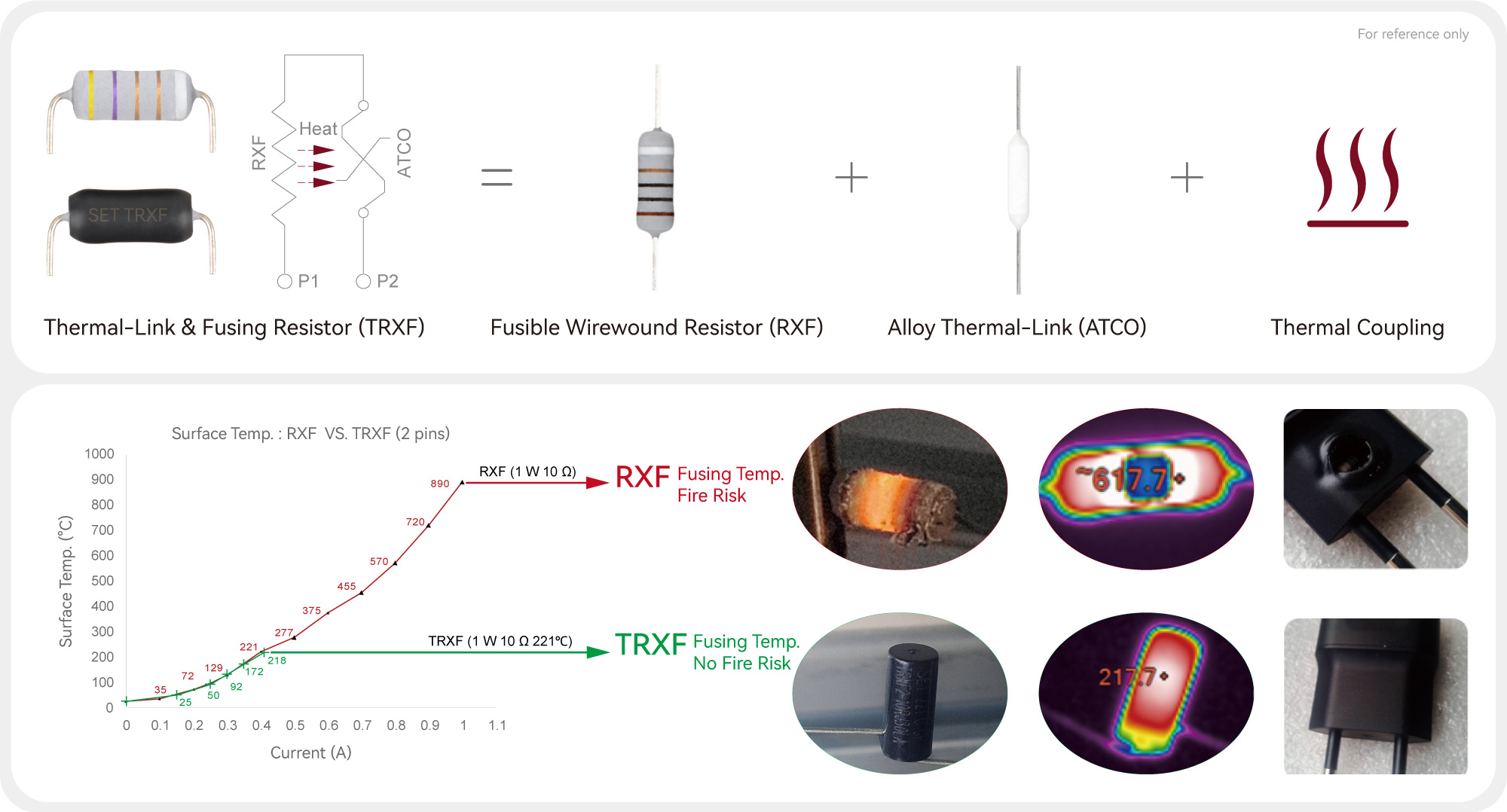

Thermal-Link & Fusing Resistor (TRXF) is an unique type of Power Resistor, with Over Temp. and Over Current Protections. The Alloy Thermal-Link (ATCO) is built in the core of Fusible Wirewound Resistor (RXF) and in series with RXF.



SETsafe | SETfuse TRXF has the same physical size as ordinary RXF as well as large fault current protection. Besides, TRXF can effectively solve the hidden danger of continuous abnormal heat that ordinary RXF may cause when small fault current happens.



Features

● Patented Product

● Over Temp. Protection

● Surge Protection

● Inrush Current Protection

● Small Fault Current Protection

● Short Circuit Protection

● RoHS & REACH Compliant

Mounting Style

Through Hole

Applications

● Switch Mode Power Supply (SMPS)

● Adapters

● LED Drivers

● Small Power Home Appliances

Technology Applications.png Markets Applications.png

Design Standards & Agency Approvals

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION
