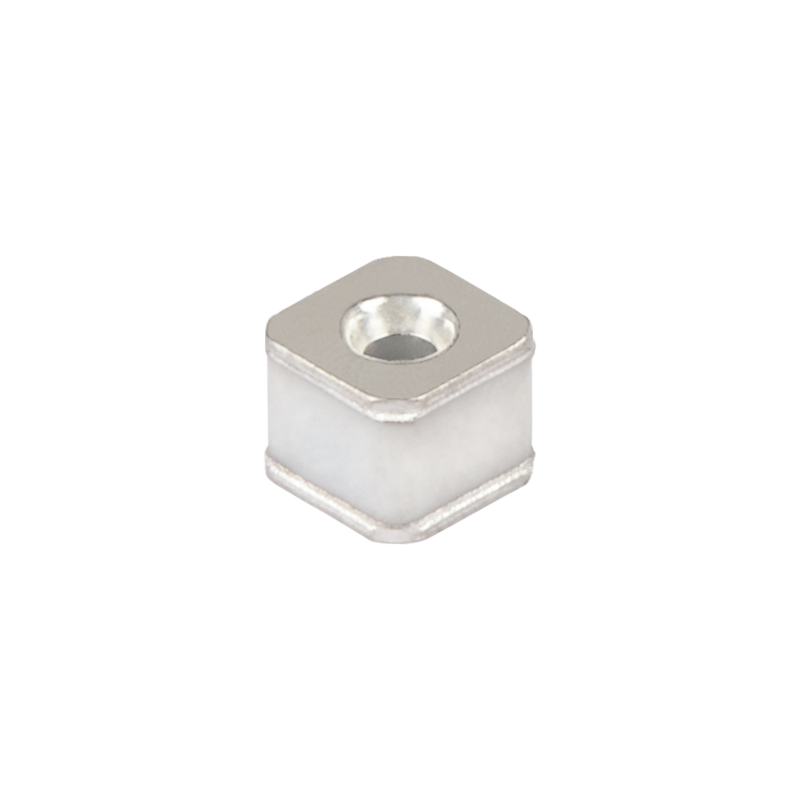

SU series

D.C. Spark-Over Voltage (Vs): 90 ~ 800 V

Impulse Discharge Current (In)(8/20 μs): 5 kA / 10 kA

Dimensions: L5.0 × W5.4 × H5.4 mm

Datasheet

2024-2026 Year Version.

GDT SU(SMD)_SETsafe & SETfuse.pdf


Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Manufacturer

Xiamen SET Electronics Co., Ltd.

Features

● Fast Response

● Stable Performance Over Surface Life

● High Current Rating

● Low Capacitance

● High Insulation Resistance

● RoHS & REACH Compliant

Mounting Style

Surface Mount

Applications

● WLAN x DSL

● CATV

● MDF

● Ethernet

● BTS(Base Station)

● Power Supply

● Antenna and RF

● Consumer Electronics

● N-PE Protection in AC Power
