Thermal Fuse & MOV (TFMOV)
  • Thermal Fuse & MOV (TFMOV)
  • TFMOV20SxxxL series×

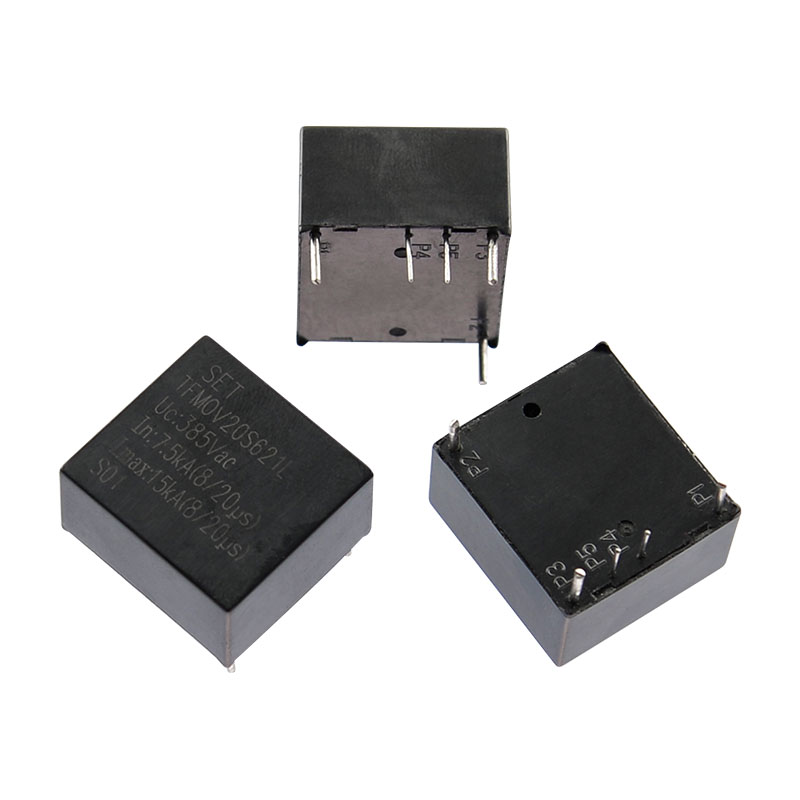

TFMOV20SxxxL series

Max. Continuous Operating Voltage (Uc): 30 ~ 420 VAC

Nominal Discharge Current (In)(8/20 μs): 2.5 ~ 7.5 kA

Max. Discharge Current (Imax)(8/20 μs): 5 ~ 15 kA

Datasheet

2024-2026 Year Version.

When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.

TFMOV 20SxxxL_SETsafe & SETfuse.pdf


2021-2023 Year Version.

While purchasing 2021-2023 version products, please refer to the data below.

TFMOV 20SxxxL SETsafe & SETfuse.pdf


Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Manufacturer

Xiamen SET Electronics Co., Ltd.

Technology

TFMOV is a combination of varistors (MOV) and thermal protection component. Since varistor has the characteristics of aging or degrading; TFMOV can separate the varistor from the main circuitry by opening the thermal protection component when the varistor (MOV) degrades or fails. It is often used in which requires high reliability and weather withstanding, such as photovoltaic inverters, communication equipment, and power supplies in data centers, etc.


Features

● High Reliability

● Small Size

● Remote Signal Contact for Failure Indication (Optional)

● High Energy Capacity

● Sealing Material, Flame-retardant to V0 (UL 94)

● Comply whit UL 1449

● RoHS & REACH Compliant

Mounting Style

Through Hole

3D of Product Structure

You can download the 3D diagram of product structure to help you improve design efficiency to create more great products.

TFMOV20SxxxL series_3D_TFMOV_SETsafe & SETfuse.zip

Applications

● Telecom Equipment

● String Inverter in Photovoltaic System

● AC / DC Power Supply

● Uninterruptable Power Supply (UPS)

● Surge Protective Device (SPD)

● AC Power Meter

● Power Distribution Unit (PDU)

Technology Applications.png Markets Applications.png

Design Standards & Agency Approvals

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com


UL (America):

Standards: UL 1449

File No.: E322662

UL_TFMOV_TFMOV10S & 15S & 20S & 25S & 34S & 20SxxxL & 25SxxxL & 34SxxxL & 25D & 21R2P_SETsafe & SETfuse.pdf



cUL (Canada):

Standards: CSA C22.2 No. 269

File No.: E322662

UL_TFMOV_TFMOV10S & 15S & 20S & 25S & 34S & 20SxxxL & 25SxxxL & 34SxxxL & 25D & 21R2P_SETsafe & SETfuse.pdf
