2024-2026 Year Version.

When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.

ESD SD0504F06U(DFN0603)_SETsafe & SETfuse.pdf

2021-2023 Year Version.

While purchasing 2021-2023 version products, please refer to the data below.

ESD SD0504F06U(DFN0603)_SETsafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Xiamen SET Electronics Co., Ltd.

● IEC61000-4-2 (ESD) ± 15 kV (Air), ± 8 kV (Contact)

● IEC61000-4-4 (EFT) 40 A (5 / 50 ns)

● Cable Discharge Event (CDE)

● Package Optimized for High-speed Lines

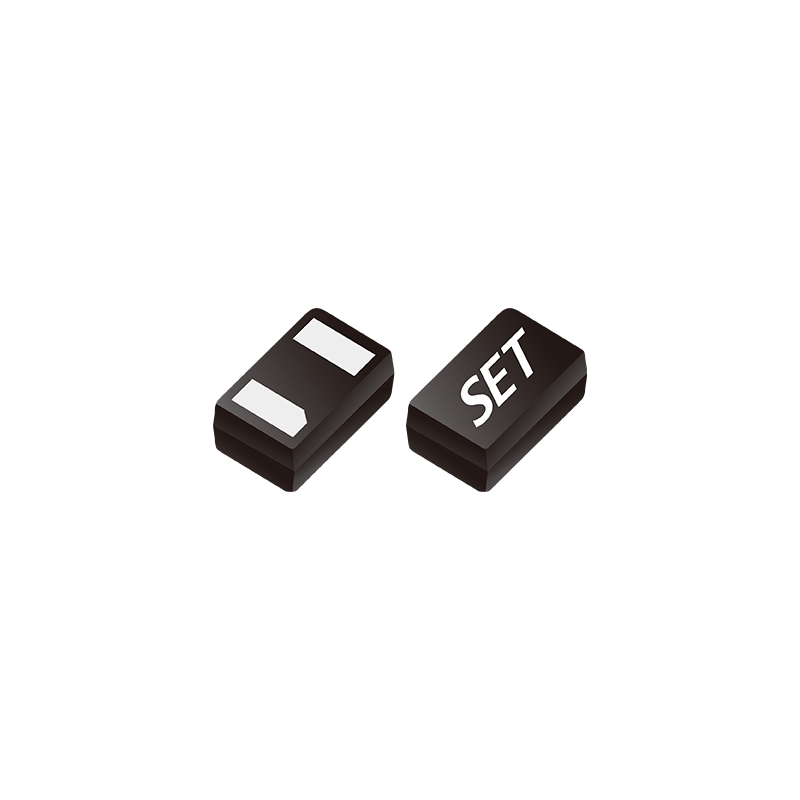

● Ultra-small Package (0.6 mm´0.3 mm´0.3 mm)

● Protects One Data, Control Line

● Low Capacitance: 0.25 pF (Typical)

● Low Leakage Current

● Low Clamping Voltage

● Flammability Rating: UL 94 V-0

● Halogen Free and RoHS Compliant

Surface Mount

SMD

● Serial and Parallel Ports

● Notebooks, Desktops, Servers

● MDDI Ports

● Cellular handsets and accessories

● USB Data Line Protection

● Display Ports

● Digital Visual Interfaces (DVI)

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.

Quality Policy.

Qualified Supplier of Raw Materials.

Incoming Quality Control (IQC):

Acceptance Quality Limit (AQL), Dimension, Function, Visual Inspection, RoHS & REACH Test. etc..

Process:

Online Inspection and Function Test 100%, etc..

In Process Quality Cortrol (IPQC): AQL, Dimension, Function, Visual Inspection, etc..

Final Quality Control (FQC):

AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test, etc..

Reliability Test:

AQL Sampling Test.

Outgoing Quality Control (OQC):

Packaging, Labeling, Quantity Inspection, etc..

Quality Management System:

TUV Approved and Issued Certificate.
