ESD TVS Diode Arrays (ESD TVS)
SD0505D52U series×

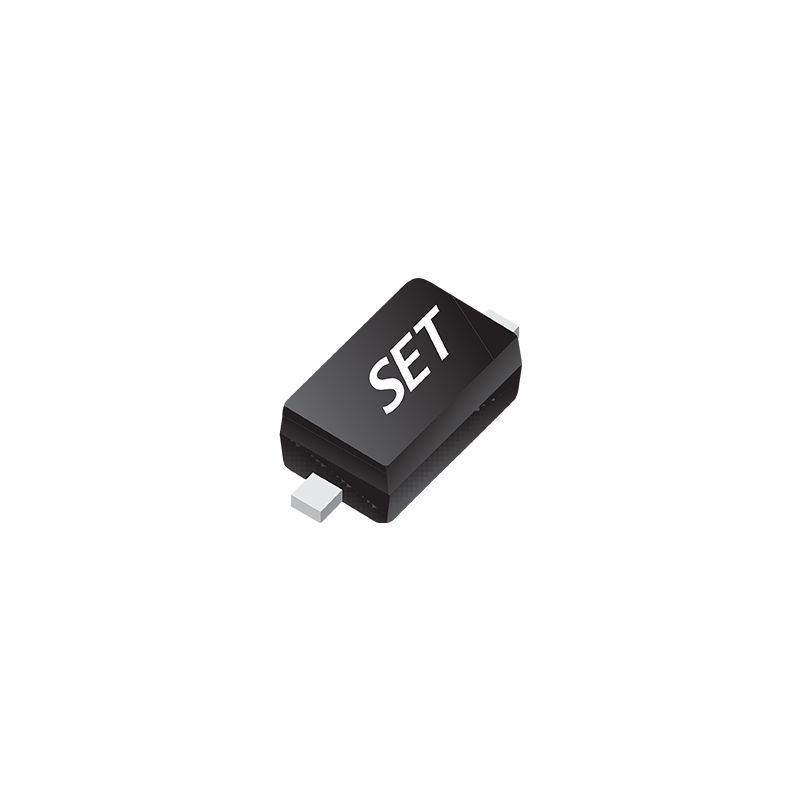

SD0505D52U series

Reverse Standoff Voltage (VRWM): 5 V

Capacitance (CJ): 0.4 PF

Feature: IEC61000-4-2 (ESD) ± 25 kV (air), ± 20 kV (contact)

Datasheet
Manufacturer
Features
Mounting Style
Termination Style
Applications
Quality Assurance
Brand
Tradename
Overview

2024-2026 Year Version.

When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.

ESD SD0505D52U(SOD523)_SETsafe & SETfuse.pdf

2021-2023 Year Version.

While purchasing 2021-2023 version products, please refer to the data below.

ESD SD0505D52U(SOD523)_SETsafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Xiamen SET Electronics Co., Ltd.

● IEC61000-4-2 (ESD) ± 25 kV (Air), ± 20 kV (Contact)

● IEC61000-4-4 (EFT) 40 A (5 / 50 ns)

● Cable Discharge Event (CDE)

● Package Optimized for High Speed Line

● Ultra-small Package 1.6 mm × 0.8 mm × 0.6 mm

● Protects One Data, Control Line (Bidirectional)

● Low Capacitance 0.25 pF(Typical)

● Low Clamping Voltage

● Low Leakage Current

● High Temperature Soldering Guaranteed: 260 °C / 10 sec

● Flammability Rating: UL 94 V-0

● Halogen Free and RoHS Compliant

Surface Mount

Termination Style

SMD

● Series ATA

● USB2.0 Power and Data Line Protection

● Notebooks, Desktops, and Servers
