ESD TVS Diode Arrays (ESD TVS)
SD2403F10L series×

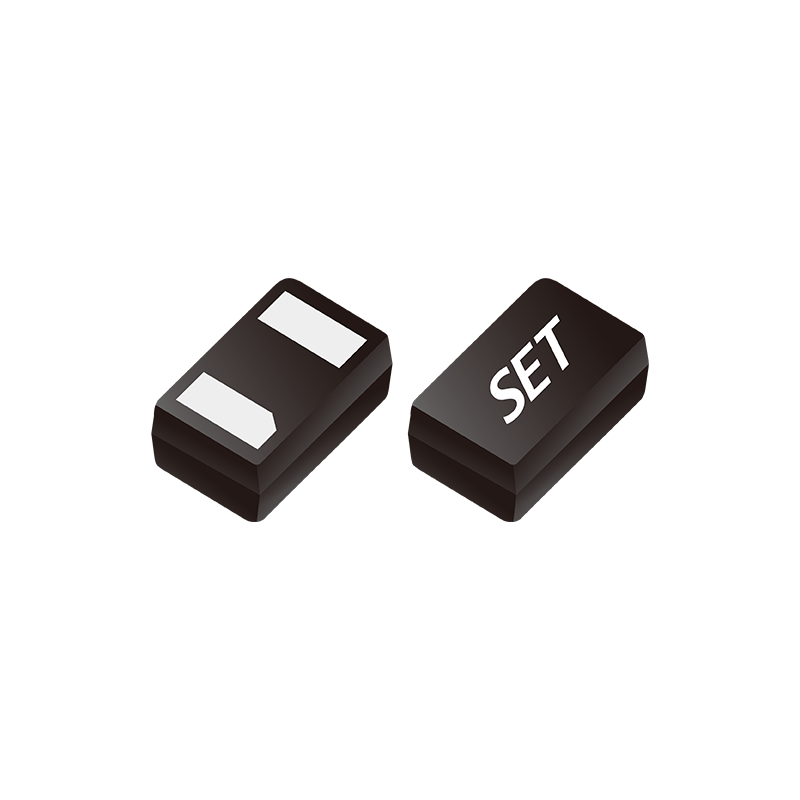

SD2403F10L series

Reverse Standoff Voltage (VRWM): 24 V

Capacitance (CJ): 17 PF

Feature: IEC61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)

Datasheet
Manufacturer
Features
Mounting Style
Termination Style
Applications
Quality Assurance
Brand
Tradename
Overview

2024-2026 Year Version.

When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.

ESD SD2403F10L(DFN1006)_SETsafe & SETfuse.pdf

2021-2023 Year Version.

While purchasing 2021-2023 version products, please refer to the data below.

ESD SD2403F10L(DFN1006)_SETsafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Xiamen SET Electronics Co., Ltd.

● IEC61000-4-2 (ESD) ± 15 kV (Air), ± 8 kV (Contact)

● IEC61000-4-4 (EFT) 40 A (5 / 50 ns)

● IEC61000-4-5 (Lighting) 3 A (8 / 20 μs)

● 150 Watts Peak Pulse Power Per (tp=8 / 20 μs)

● Low Capacitance: 17 pF (Maximum)

● Low Leakage Current

● Low Clamping Voltage

● Flammability Rating: UL 94 V-0

● Halogen Free and RoHS Compliant

Surface Mount

Termination Style

SMD

● Serial and Parallel Ports

● Notebooks, Desktops, Servers

● Projection TV

● Cellular handsets and accessories

● Portable instrumentation

● Peripherals
