ESD TVS Diode Arrays (ESD TVS)
SD3V320D32U series×

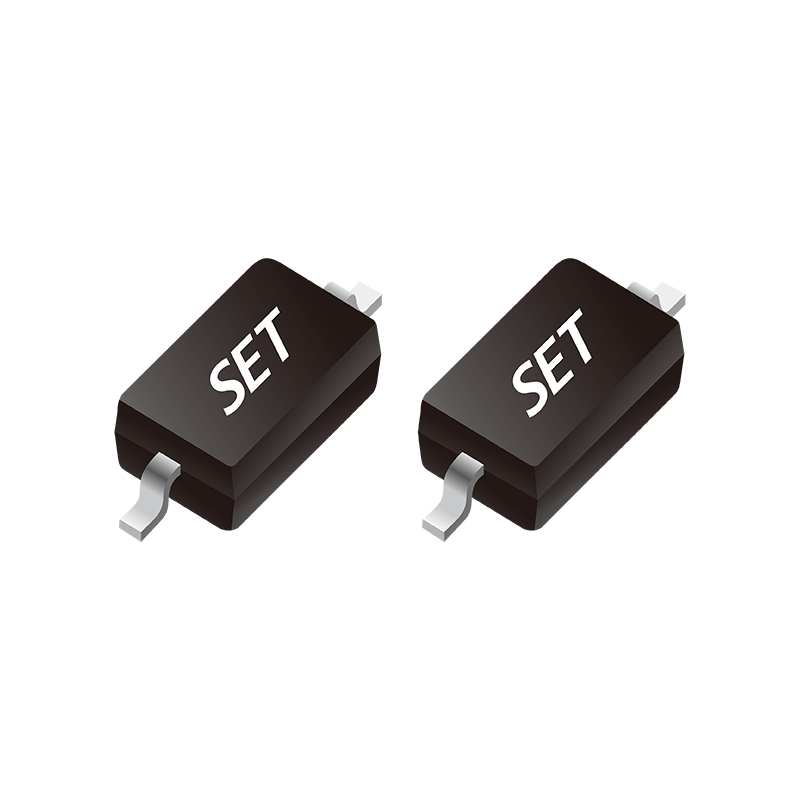

SD3V320D32U series

Reverse Standoff Voltage (VRWM): 3.3 V

Capacitance (CJ): 1.5 PF

Feature: IEC61000-4-2 (ESD) ± 30 kV (air), ± 30 kV (contact)

Datasheet
Manufacturer
Features
Mounting Style
Termination Style
Applications
Quality Assurance
Brand
Tradename
Overview

2024-2026 Year Version.

When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.

ESD SD3V320D32U(SOD323)_SETsafe & SETfuse.pdf

2021-2023 Year Version.

While purchasing 2021-2023 version products, please refer to the data below.

ESD SD3V320D32U(SOD323)_SETsafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Xiamen SET Electronics Co., Ltd.

● IEC61000-4-2 (ESD) ± 30 kV (air), ± 30 kV (contact)

● IEC61000-4-4 (EFT) 40 A (5 / 50 ns)

● IEC61000-4-5 (Lightning) 20 A (8 / 20 μs)

● Protects One I/O Line (Bi-directional)

● Low Clamping Voltage

● Working Voltages : 3.3 V

● Low Leakage Current

● High Temperature to Reflow Soldering Guaranteed: 260 °C / 10 sec

● MSL1

● Flammability Rating: UL 94 V-0

● Halogen Free and RoHS Compliant

Surface Mount

Termination Style

SMD

● Microprocessor based equipment

● Personal Digital Assistants (PDA’s)

● Notebooks, Desktops, and Servers

● Cell Phone Handsets and Accessories

● Portable Instrumentation

● Peripherals

● USB Interface

Quality Assurance

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.

Quality Policy.

Qualified Supplier of Raw Materials.

Incoming Quality Control (IQC):

Acceptance Quality Limit (AQL), Dimension, Function, Visual Inspection, RoHS & REACH Test. etc..

Process:

Online Inspection and Function Test 100%, etc..

In Process Quality Cortrol (IPQC): AQL, Dimension, Function, Visual Inspection, etc..

Final Quality Control (FQC):

AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test, etc..

Reliability Test:

AQL Sampling Test.

Outgoing Quality Control (OQC):

Packaging, Labeling, Quantity Inspection, etc..

Quality Management System:

TUV Approved and Issued Certificate.

Download the certificate, please click the link.

https://www.setsafe.com/Support/Management-System/ISO-Certificate-Download.html
