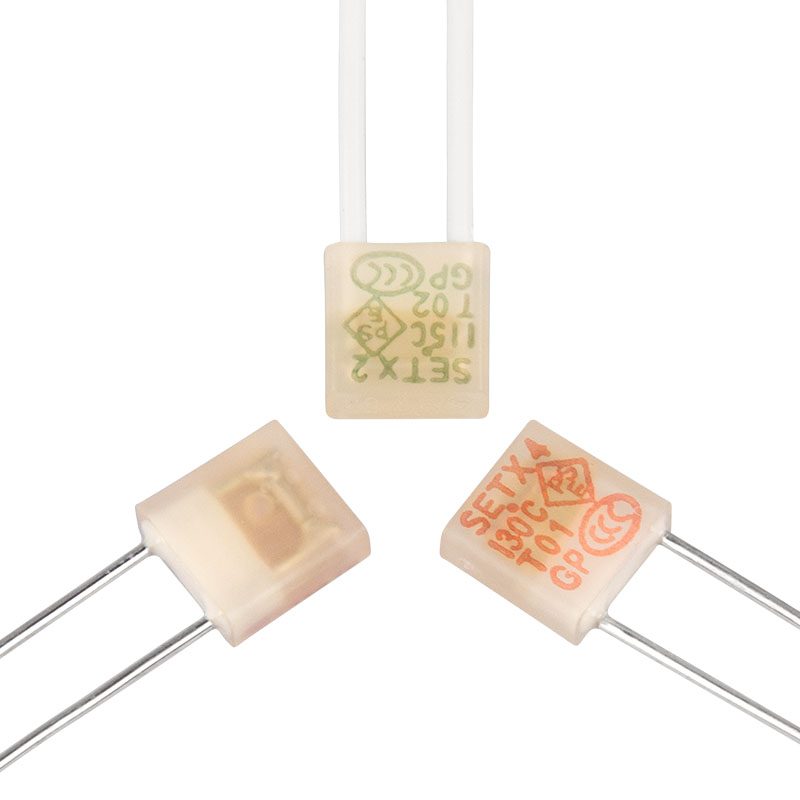

Thermal-Link (ATCO) - Alloy Type
  • Thermal-Link (ATCO) - Alloy Type
  • X series×
X series

Rated Functioning Temp. (Tf): 76 ~ 221 ℃

Rated Current (Ir): 3 A / 250 VAC, 4 A / 60 VDC

Rated Voltage (Ur): 250 VAC, 60 VDC

Datasheet

2024-2026 Year Version.

When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.

ATCO X(Radial)_SETsafe & SETfuse.pdf


2021-2023 Year Version.

While purchasing 2021-2023 version products, please refer to the data below.

ATCO X(Radial)_SETsafe & SETfuse.pdf


Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Manufacturer

Xiamen SET Electronics Co., Ltd.

Features

● Transparent Plastic Case

● Non-Resettable

● High Accuracy of Functioning Temp.

● RoHS & REACH Compliant

Mounting Style

Through Hole

Applications

● Lamps

● Switched-Mode Power Supplies

● Home Electrical Appliances

● Transformers

● Motors

● Batteries

Technology Applications Markets Applications

Design Standards & Agency Approvals

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION
