Thermally Protected Varistors - Mechanically Off Type Thermally Protected Varistors (TFMOV) are thermally protected varistors. TFMOVs have all the characteristics of a thermally protected varistor (MOV), but are also thermally protected. there are two types of deterioration of MOVs: natural deterioration due to long term operation, and deterioration due to an abnormal surge. When a surge occurs, the leakage current of the degraded MOV increases continuously, causing the surface temperature of the MOV to rise continuously and the possibility of fire. At this time, the heat of the MOV in TFMOV is conducted to the cryogenic alloy solder joint, which senses the abnormal temperature and acts (fuses), driving the spring slider to cut off the circuit, disconnecting the MOV from the main circuit and thus protecting the entire circuit, as well as the MOV itself will not continue to heat up, and the phenomenon of catching fire.
Thermal protection type varistor-mechanical release type (TFMOV) is widely used in over-voltage protection of new energy equipments and communication equipments. They play a great role in the absorption of abnormal voltage and lightning surge.

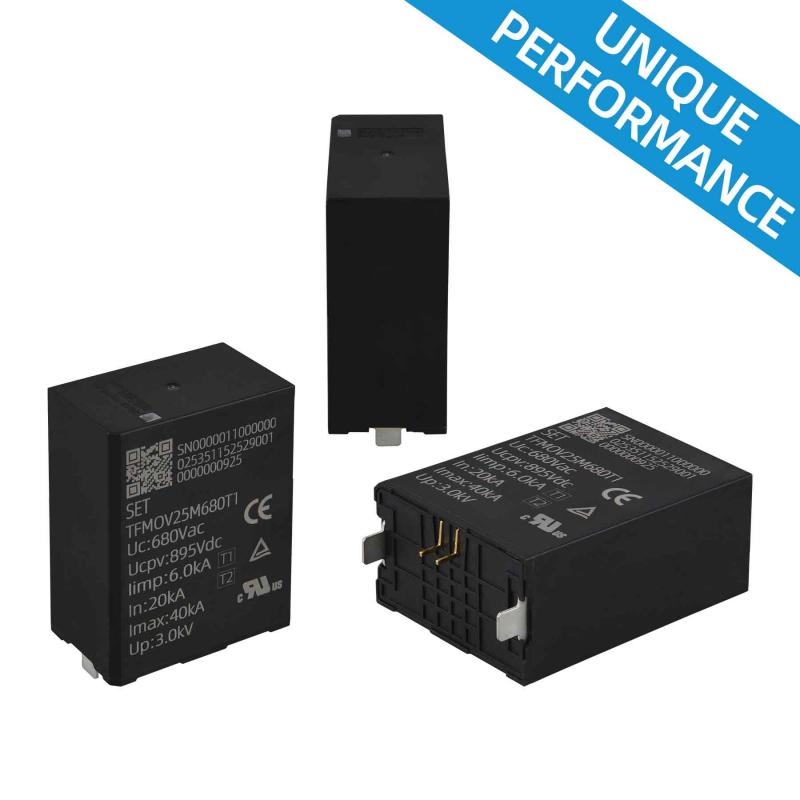

SETsafe | SETfuse companies Thermally Protected Varistors (TFMOV) are mainly composed of varistors (MOV), mechanical disconnectors, flame retardant cases and metal components. Nominal Discharge Current: (5 ~ 20) kA; Maximum Continuous Operating Voltage: (17 ~ 750) VAC; Maximum Continuous Operating DC Voltage: (500 ~ 1000) VDC; Safety Approvals: UL, cUL, TUV, CE; Complies with RoHS, REACH requirements.
VN
Nominal Varistor Voltage
Voltage, at specified d.c. current used as a reference point in the component characteristic.
8/20 μs
8/20 Current Impulse
Current impulse with a nominal virtual front time of 8 µs and a nominal time to half-value of 20 µs.
— (IEC 61643-11)
1.2/50 μs
1.2/50 Voltage Impulse
Voltage impulse with a nominal virtual front time of 1.2 µs and a nominal time to half-value of 50 µs.
— (IEC 61643-11)
Uc
Maximum Continuous Operating Voltage
Maximum r.m.s. voltage, which may be continuously applied to the SPD's mode of protection.
— (IEC 61643-11)
In
Nominal Discharge Current
Crest value of the current through the SPD having a current waveshape of 8/20.
— (IEC 61643-11)
Iimp
Impulse Discharge Current for Class I Test
Crest value of a discharge current through the SPD with specified charge transfer Q and specified energy W/R in the specified time.
— (IEC 61643-11)
Imax
Maximum Discharge Current
Crest value of a current through the SPD having an 8/20 waveshape and magnitude according to the manufacturers specification. Imax is equal to or greater than In.
— (IEC 61643-11)
VC
Clamping Voltage
Peak voltage developed across the varistor terminations under standard atmospheric conditions, when passing an 8/20 class current pulse.
CV
Capacitance
Capacitance across the MOV measured at a specified frequency and voltage.
Modes of protection
An intended current path, between terminals that contains protective components, e.g. line-to-line, line-to-earth, line-to-neutral, neutral-to-earth.
— (IEC 61643-11)
Up
Voltage Protection Level
Maximum voltage to be expected at the SPD terminals due to an impulse stress with defined voltage steepness and an impulse stress with a discharge current with given amplitude and waveshape.
— (IEC 61643-11)
TCO
Thermal-Link
A non-resettable device incorporating a THERMAL ELEMENT which will open a circuit once only when exposed for a sufficient length of time to a temperature in excess of that for which it has been designed.
ATCO
Alloy Thermal-Link
Alloy Type Thermal-Link, Alloy is the thermal element.
IP
Degree of protection of enclosure
Classification preceded by the symbol IP indicating the extent of protection provided by an enclosure against
access to hazardous parts, against ingress of solid foreign objects and possibly harmful ingress of water
— (IEC 61643-11)
Through Hole
Solder Pin
● Telecom Equipment
● String Inverter in Photovoltaic System
● AC / DC Power Supply
● Uninterruptable Power Supply (UPS)
● Surge Protective Device (SPD)
● Electric Meter
● Power Distribution Unit (PDU)
View Product Structure, Principle, Application Video
SETsafe | SETfuse Quality Policy
Provide Industry-Leading Products
Raw-materials Supplier
Select critical raw materials: Must be from a manufacturer with quality management system (ISO9001, IATF16949) certification.
Formulate corresponding incoming inspection specifications (01-QA-06-xxx) for each key material according to design data such as material technical indicators.
Testing Equipment and Tools
Projector, Tool Microscope, Digital caliper, Salt Spray Tester, Universal Material Testing Machine, Spectrum Analyzer, etc.
Manufacturing Process
Online Inspection and Testing (Function 100% Testing).
Document
Process Flow Chart.
Failure Mode and Effects Analysis (FMEA).
Quality Control Flow Chart (QCFC).
Standard Inspection Procedure (SIP).
Work Instruction (WI).
Online Testing and Inspection
Static three-parameter detection system.
Resistance test system (100% Testing).
100% Visual inspection.
etc.
IPQC(In Process Quality Control) Inspection
AQL(MIL-STD-105E), Dimensions Inspection, Function Test, Visual Inspection.
Including 29 items of appearance requirements, electrical performance, mechanical performance, Soldering performance, environmental test and Material performance. e.g.
2. The voltage applied continuously to the TFMOV can not exceed its maximum continuous operating voltage Uc.
3. When atmosphere press is from 80 kPa to 106 kPa, the related altitude shall be from 2000 meters to - 500 meters.
4. Do not touch the product body or pins directly when power is on, to avoid electric shock.
5. Do not clean the TFMOV with strong polar solvent such as ketone, esters, benzene, halogenated hydrocarbon, to avoid damaging the enclosure.
6. It should have a reliable grounding when using these products.
Replacement
TFMOV is a non-repairable product. For safety sake, please use equivalent TFMOV for replacement.
Storage
Do not store TFMOV at high temperature, high humidity or corrosive gas environment. To avoid reducing the solderability of the pins, please use them up within 1 year after receiving the goods.
Installation Position
Do not install the TFMOV on a place that may often suffer severe continuous vibration.
Mechanical Stress
Do not take violent action such as knocking when assembling to avoid mechanical damage.
Over Temperature Protection（80）
Over Voltage Protection（228）
Over Current Protection（51）
