idea Thermal CutOff (iTCO) is a fuse that uses low melting point alloys as the electrical connection point of the main circuit, with built-in heater as the control circuit, to achieve controlled fusing function. idea Thermal CutOff (iTCO) is consist mainly of Thermal Element, Electrode, Flux Resin, Feed Heater, Alloy Thermal-Link and Lead wire, sealed in plastic or ceramic housings.

idea Thermal CutOff (iTCO) is mainly used in the protection of new energy security, and secondary protection for charging and discharge circuits. idea Thermal CutOff (iTCO) mainly uses two electrodes which are connected with the thermal element of the fusing elements as electrical connections with passive temperature-sensing fusing actions. At the same time, Built-in heater with independent over-temperature protection heats the thermal element, provides sufficient heat to the fuse, cuts off the main circuit and disconnects the control circuit to achieve self-protection.

SETsafe | SETfuse idea Thermal CutOff (iTCO) covers Rated Current from 20 to 270 A, Rated Voltage from 80 to 500 VDC, Rated Functioning Temp. 136 to 150 °C, with UL, cUL, TUV Approvals and RoHS, REACH compliant.

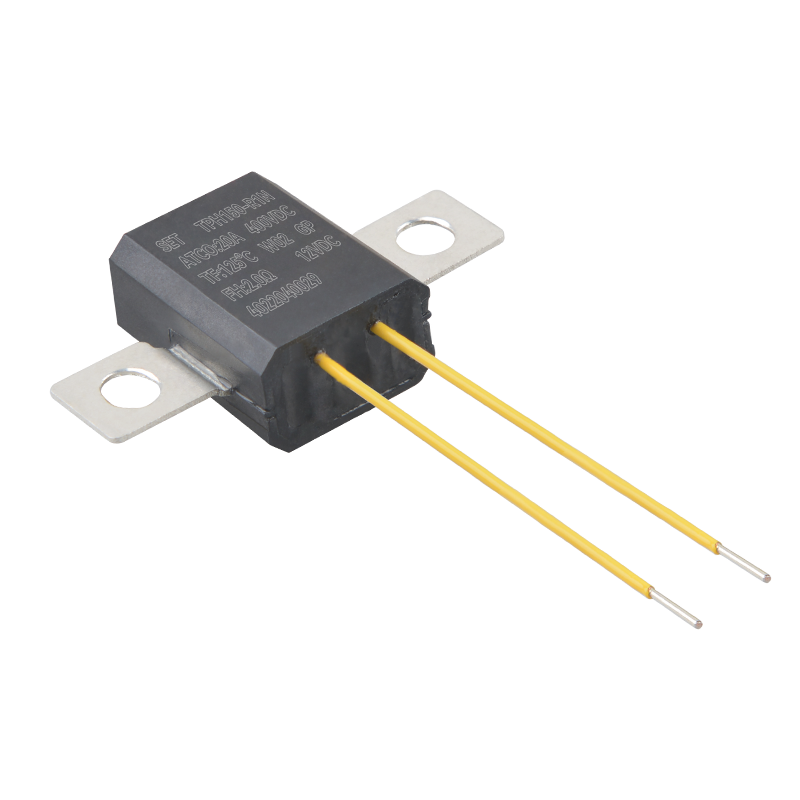

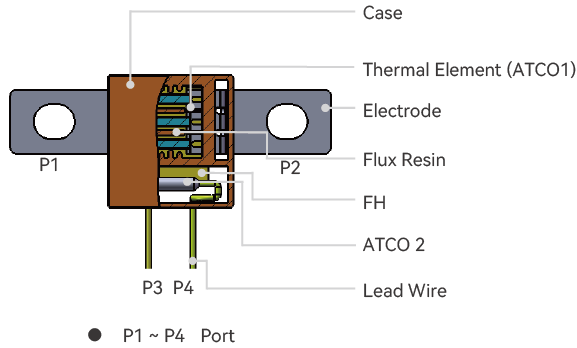

Structure Diagrams

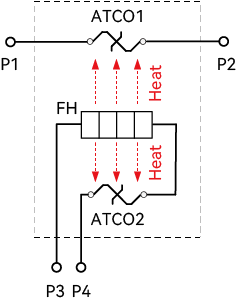

Product Schematic

P1 ~ P2 Main Circuit (MC)

P3 ~ P4 Control Circuit (CC)

● Low Impedance, Low Power Consumption

● Fast Response Clearing Time ≤ 20 seconds

● Non-Resettable

● Active Control

● Over Temperature Protection

● Self-Control Protection

● RoHS & REACH Compliant

Stud, Soldering

Axial

You can download the 3D diagram of product structure to help you improve design efficiency to create more great products.

For more information, please contact SETsafe | SETfuse: sales@SETfuse.com.

● Battery Control Unit Fail Protection

● High Power Solid State Relays

● PTC Heaters

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com

The following is part of the product certification, not the entire product certification

Agency Approvals for ATCO2：

UL (America):

Standards: UL60691

File No.: On-going

cUL (Canada):

Standards: CAN-CSA-E60691

File No.: On-going
