Thermal-Link & Fusing Resistor (TRXF)
  • Thermal-Link & Fusing Resistor (TRXF)
  • TRXF2 series×

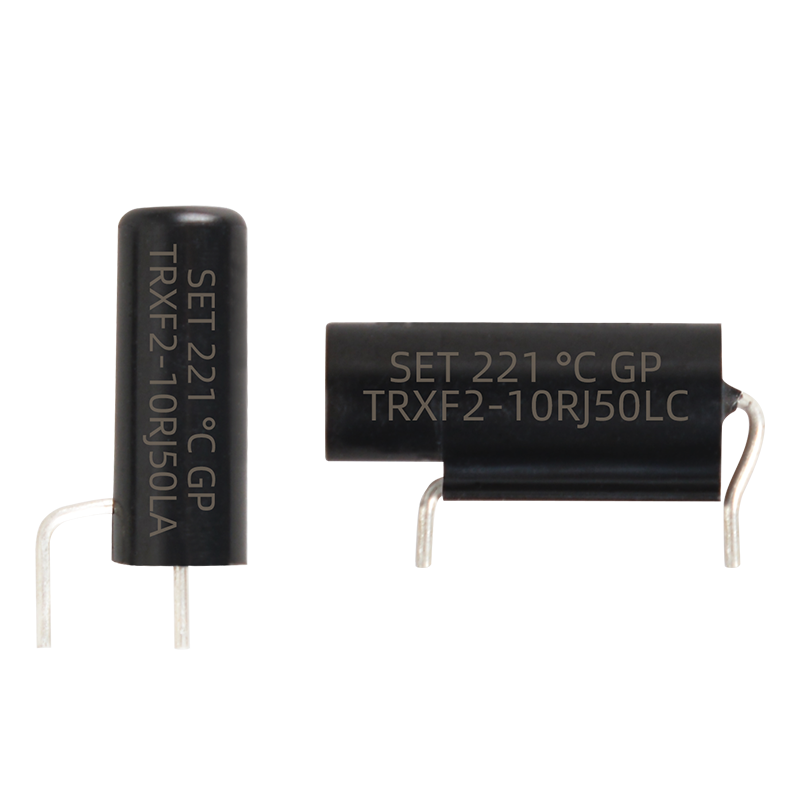

TRXF2 series

Power Type (P): 2 W

Rated Resistance (R): 0.27 ~ 1000 Ω

Resistance Tolerance: 5% / 10%

Rated Functioning Temp. (Tf): 150 / 221 ℃


2024-2026 Year Version.

When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.

TRXF TRXF2_SETsafe & SETfuse.pdf

2021-2023 Year Version.

While purchasing 2021-2023 version products, please refer to the data below.

TRXF TRXF2_SETsafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.


Xiamen SET Electronics Co., Ltd.


Thermal-Link & Fusing Resistor (TRXF) is an unique type of Power Resistor, with Over Temp. and Over Current Protections. The Alloy Thermal-Link (ATCO) is built in the core of Fusible Wirewound Resistor (RXF) and in series with RXF.


SETsafe | SETfuse TRXF has the same physical size as ordinary RXF as well as large fault current protection. Besides, TRXF can effectively solve the hidden danger of continuous abnormal heat that ordinary RXF may cause when small fault current happens.

科技-2系列_画板 1.png


● Patented Product

● Over Temp. Protection

● Surge Protection

● Inrush Current Protection

● Small Fault Current Protection

● Short Circuit Protection

● RoHS & REACH Compliant

Mounting Style

Through Hole

Termination Style

Axial, Radial


● Switch Mode Power Supply (SMPS)

● Adapters

● LED Drivers

● Small Power Home Appliances

Technology Applications.png Markets Applications.png

Design Standards & Agency Approvals


The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact:

UL (America):

Standards: UL 1412

File No.: E324712

UL_TRXF & TRXF(Axial Type)_SETsafe & SETfuse.pdf

cUL (Canada):

Standards: UL 1412

File No.: E324712

cUL_TRXF_SETsafe & SETfuse.pdf

TUV (Germany):

Standards: IEC 60065

File No.: R50279979

TUV_TRXF_TRXF2(Axial type)_SETsafe & SETfuse.pdf

CQC (China):

Standards: SJ 2865-1988

File No.: CQC10001049761

CQC_TRXF_TRXF2(Axial Type)_SETsafe & SETfuse.pdf

Quality Assurance

TRXF Quality Assurance

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.

Quality Policy.

Qualified Supplier of Raw Materials.

Incoming Quality Control (IQC):

Acceptance Quality Limit (AQL), Dimension, Function, Visual Inspection, RoHS & REACH Test. etc..


Online Inspection and Function Test 100%, etc..

In Process Quality Cortrol (IPQC): AQL, Dimension, Function, Visual Inspection, etc..

Final Quality Control (FQC):

AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test, etc..

Reliability Test:

AQL Sampling Test.

Outgoing Quality Control (OQC):

Packaging, Labeling, Quantity Inspection, etc..

Agency Information:

Safety Certificate Agency Annual, Quarterly Audits. Include UL, cUL, VDE, TUV, KC, PSE, CCC. etc..

Quality Management System:

TUV Approved and Issued Certificate.
