Thermally Protected Resistor (TPR)
TPR10×

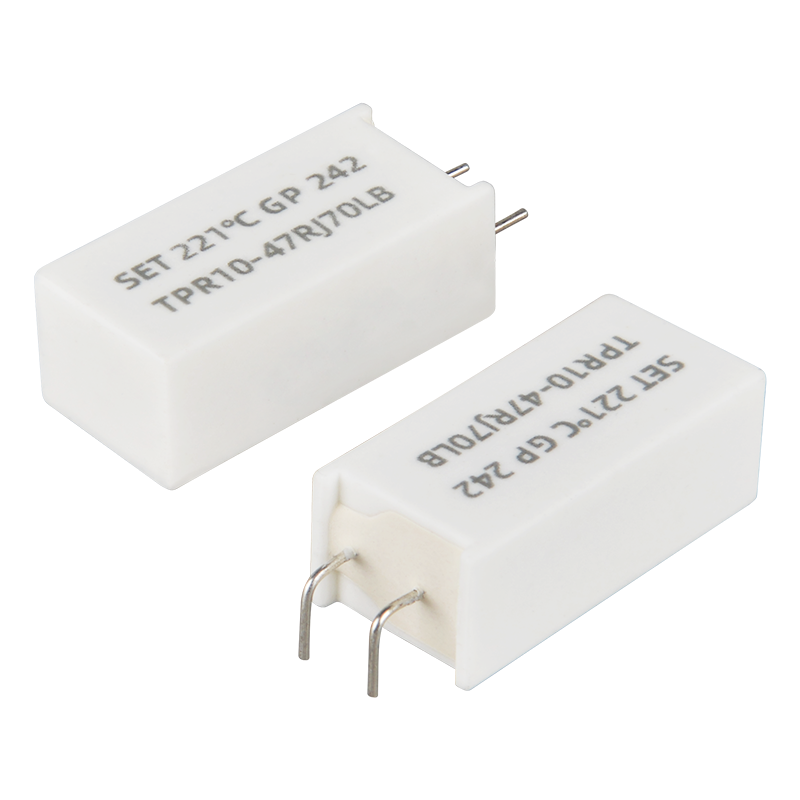

TPR10

Power Type (P): 10 W

Rated Resistance (R): 0.1 ~ 100 Ω

Resistance Tolerance: 5% / 10%

Rated Functioning Temp. (Tf): 145 / 221 °C

Datasheet
Manufacturer
Features
Mounting Style
Termination Style
Applications
Design Standards & Agency Approvals
Quality Assurance
Brand
Tradename
Overview

2024-2026 Year Version.

TPR TPR10_SETsafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Xiamen SET Electronics Co., Ltd.

● Over Temp. Protection

● Small Fault Current Protection

● Short Circuit Protection

● Inrush Current Protection

● RoHS Compliant

Through Hole
