Thermally Protected Resistor (TPR)
TPR3 series×

TPR3 series

Power Type (P): 3 W

Rated Resistance (R): 0.27 ~ 800 Ω

Resistance Tolerance: 5% / 10%

Rated Functioning Temp. (Tf): 115 / 125 / 130 / 135 / 145 / 150 / 221 °C

Datasheet
Manufacturer
Features
Mounting Style
Termination Style
Applications
Design Standards & Agency Approvals
Quality Assurance
Brand
Tradename
Overview

Datasheet

2024-2026 Year Version.

When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.

TPR TPR3_SETsafe & SETfuse.pdf

2021-2023 Year Version.

While purchasing 2021-2023 version products, please refer to the data below.

TPR TPR3_SETsafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Manufacturer

Xiamen SET Electronics Co., Ltd.

Features

● (20.5 × 11.5 × 7.0) mm

● Over Temp. Protection

● Small Fault Current Protection

● Short Circuit Protection

● Inrush Current Protection

● RoHS Compliant

Mounting Style

Through Hole

Termination Style

Radial

Applications

● Switch Mode Power Supplies (SMPS)

● Adapters

● Home Appliances and Office Appliances

(TV, Washer, Fridge, Printer, etc.)

Design Standards & Agency Approvals

Quality Assurance

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.

Quality Policy.

Qualified Supplier of Raw Materials.

Incoming Quality Control (IQC):

Acceptance Quality Limit (AQL), Dimension, Function, Visual Inspection, RoHS & REACH Test. etc..

Process:

Online Inspection and Function Test 100%, etc..

In Process Quality Cortrol (IPQC): AQL, Dimension, Function, Visual Inspection, etc..

Final Quality Control (FQC):

AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test, etc..

Reliability Test:

AQL Sampling Test.

Outgoing Quality Control (OQC):

Packaging, Labeling, Quantity Inspection, etc..

Agency Information:

Safety Certificate Agency Annual, Quarterly Audits. Include UL, cUL, VDE, TUV, KC, PSE, CCC. etc..

Quality Management System:

TUV Approved and Issued Certificate.

Brand

SETsafe | SETfuse

Tradename

SET

Overview

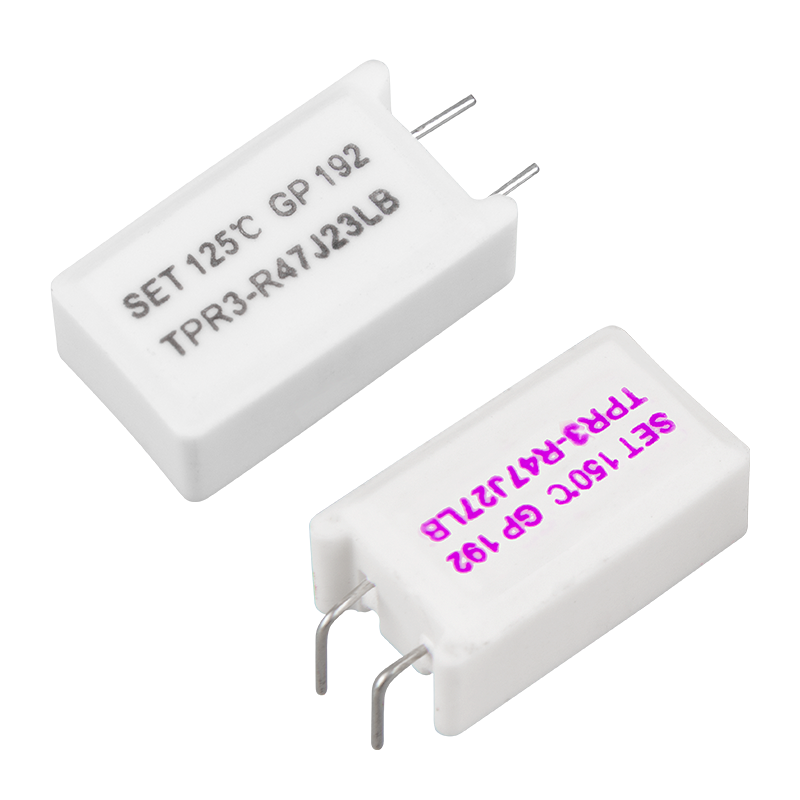

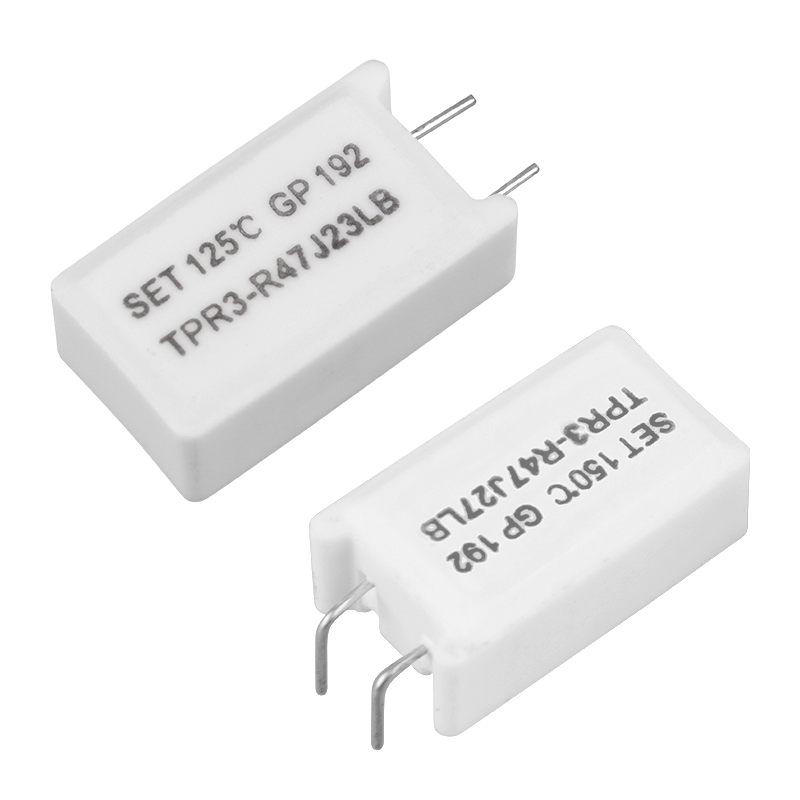

Thermally Protected Resistor (TPR) is an unique type of Power Resistor, with Over Temp. and Over Current Protections. Thermally Protected Resistor (TPR) is a type of power resistor, where Alloy Thermal-Link (ATCO) and Fusible Wirewound Resistor (RXF) are in series encapsulated in a ceramic case with silicone cement.

SETsafe | SETfuse TPR has the same physical size as ordinary ceramic resistor while additionally providing fault current protection. TPR can also effectively protect against the damages to devices & equipment, caused by continuous heat dissipations by ceramic resistors due to fault currents.
