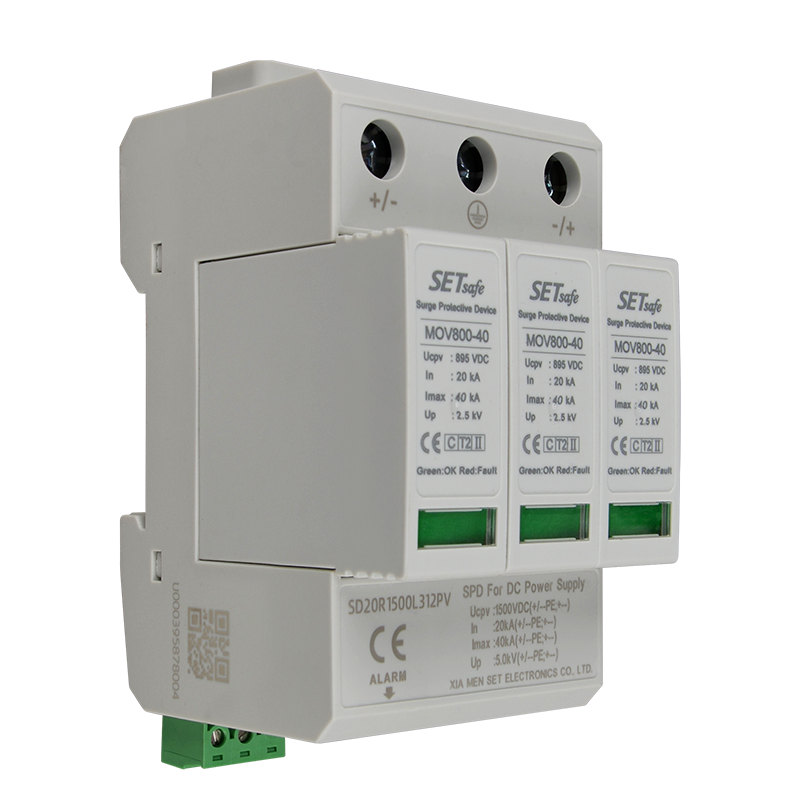

SPD for Low-voltage DC Systems (PV, ESS)
SD20RxxxL312PV series×

SD20RxxxL312PV series

Max. Continuous Operating Voltage (Ucpv): 1000 ~ 1500 VDC

Nominal Discharge Current (In)(8/20 μs): 20 kA

Max. Discharge Current (Imax)(8/20 μs): 40 kA

Protection Mode: Y

Datasheet
Sample Request
Manufacturer
Features
Mounting Style
Termination Style
3D of Product Structure
Applications
Design Standards & Agency Approvals
Quality Assurance
Brand
Tradename
Overview
About SETsafe | SETfuse

Datasheet

2024-2026 Year Version.

SPD SD20RxxxL312PV_SETsafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Sample Request

Samples requests, please click the link.

https://www.setsafe.com/Support/Sample-Request.html

Please contact: sales@SETfuse.com

Manufacturer

Xiamen SET Electronics Co., Ltd.

Features

● With Remote Signal Contact and Failure Indication

● Pluggable Module for Easy Replacement

● Internal Thermal Protection, Fail-safe

Mounting Style

Din-Rail

Termination Style

Screw

3D of Product Structure

You can download the 3D diagram of product structure to help you improve design efficiency to create more great products.

Applications

● Photovoltaic Inverter

● Distribution Power Unit (DPU)

● DC Lightning Protection Box

● DC Power Supply

● Energy Storage Converter
