Thermal Protected Transient Suppression Diode (TTVS)
  • Thermal Protected Transient Suppression Diode (TTVS)
  • TTVSxxM series×

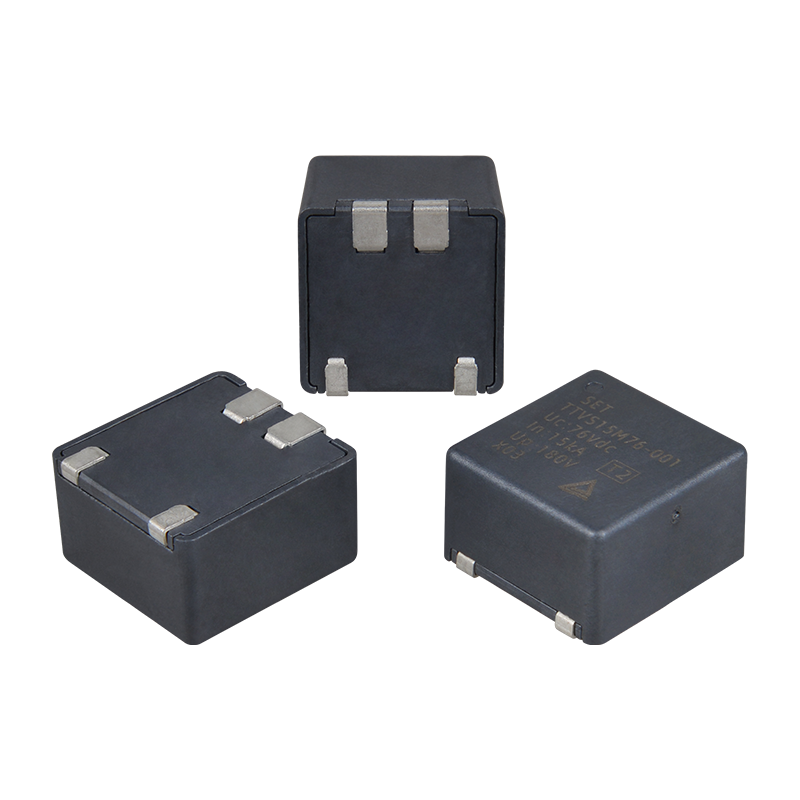

TTVSxxM series

VBR@IT10 mA: 67 ~ 90 VDC

Uc: 58 ~ 76 VDC

In (8/20 μs): 15 ~ 20 kA

Datasheet

2024-2026 Year Version.

When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.

TTVS xxM_SETsafe & SETfuse.pdf


Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Manufacturer

Xiamen SET Electronics Co., Ltd.

Technology

Thermal protection type transient suppression diode (TTVS) is a combination of transient suppression diode (TVS) and thermal protection release device. When the TVS is subjected to transient energy far beyond its tolerance range, TVS burned due to over-electric stress degradation; or TVS due to a long period of time after the work of its internal structure changes, electrical degradation, heat dissipation ability to reduce the junction temperature continues to increase, and ultimately the TVS burned due to overheating. When the appeal situation occurs, the TTVS disengages the TVS from the main circuit by the action of the internal thermal protection disengagement component.

Features

 ● Overvoltage protection + overheating protection + status indication

 ● Discharge current in case of overload to protect the backup circuit

 ●Disconnect the circuit in case of failure to avoid fire hazard.

 ●Disconnect the circuit to avoid fire hazard.

 ●Small space, low residual voltage, fast response, not easy to deteriorate.

3D of Product Structure

You can download the 3D diagram of product structure to help you improve design efficiency to create more great products.

TTVS_TTVS15M series_3D_SETsafe & SETfuse.zip

Applications

● Communication equipment

● Security

● Industrial control equipment

● Power supply

● Automotive Electronics

● New Energy Equipment

● Lightning Protection

Technology Applications.png Markets Applications.png
