Thermal Protector (TMS) - Resettable

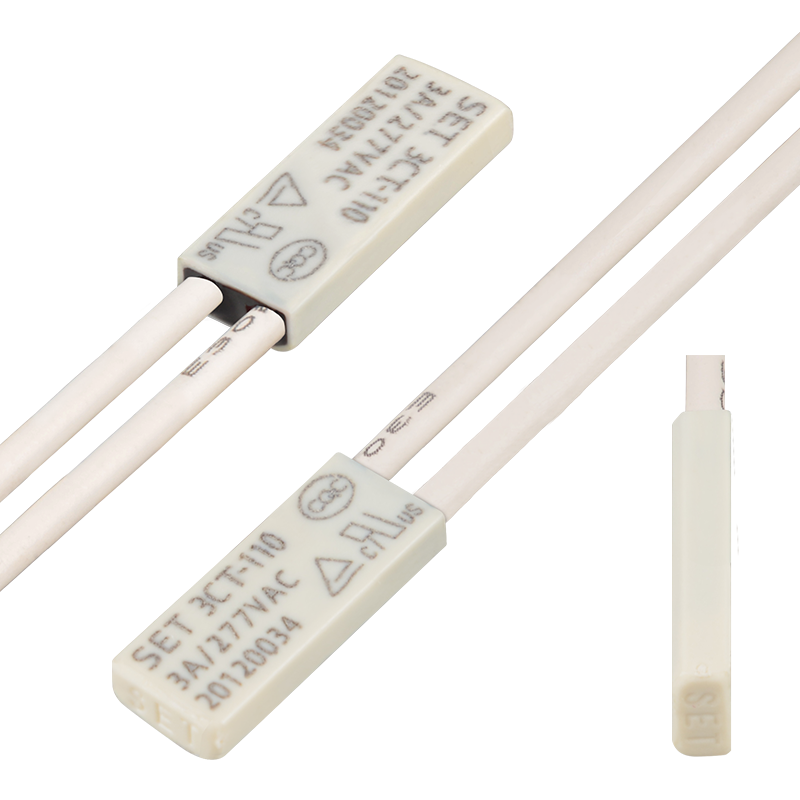

3CT series ×

3CT series

Contact Capacity: 277 VAC / 3 A ; 125 VAC / 5 A ;

24 VDC / 5 A ; 12 VDC / 8 A

Operating Temperature (To): 50 ~ 175 ℃ (in increments of 5K)

Datasheet
Manufacturer
Features
Mounting Style
Termination Style
Applications
Design Standards & Agency Approvals
Quality Assurance
Brand
Tradename
Overview

Datasheet

TMS 3CT_SETSafe & SETfuse.pdf

Manufacturer

Xiamen SET Electronics Co., Ltd.

Features

● Low Contact Resistance

● Snap Action Disc

● RoHS & REACH Compliant

Mounting Style

Panel Mount, Through Hole, Surface Mount

Termination Style

Wire, Welding, PCB Mount, QC Terminal, Rivet

Applications

● Battery Packs

● Motors

● Transformers

● Heating Appliances

● Power Tools

● Solenoids

Design Standards & Agency Approvals

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

UL (America):

Standards: UL 60730

File NO.: E516553 / E516554

UL_TMS_3CT_SETsafe & SETfuse.pdf

cUL (Canada):

Standards: CSA-E60730

File NO.: E516553 / E516554

cUL_TMS_3CT_SETsafe & SETfuse.pdf

TUV (Germany):

Standards: IEC 60730

File NO.: R50481203 / R50480598

TUV_TMS_3CT,DB03_SETsafe & SETfuse.pdf

CQC (China):

Standards: GB/T 14536

File NO.: CQC20002266233 / CQC20002266231

CQC_TMS_3CT,DB03_SETsafe & SETfuse.pdf

Quality Assurance

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.

Quality Policy.

Qualified Supplier of Raw Materials.

IQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).

Process, Online Inspection and Testing (Function 100% Test).

IPQC (AQL, Dimension, Function, Visual Inspection).

FQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).

Reliability Test (AQL).

OQC (Packaging, Labeling, Quantity Inspection).

Agency (Safety Certificate) Annual, Quarterly Audits.

Quality Management System (TUV Approved and issued certificate).

Brand

SETsafe | SETfuse

Tradename

SET

Overview

SETsafe | SETfuse thermal protector (TMS) mainly uses bimetal disc to sense current or temperature. When the temperature of the bimetal disc reaches the pre-calibrated temperature, the bimetal disc quickly trips, connect or disconnect the circuit. Ambient temperature increasing or current increasing or both of the above may cause the temperature of the bimetal to reach its pre-calibrated temperature, thereby connect or disconnect the circuit. This device covers rated current from 0 to 20 A, rated operating temperature from 30 °C to 175 °C by various part numbers. It complies with RoHS and REACH environmental protection requirements.
