TMS 17AM_SETSafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Xiamen SET Electronics Co., Ltd.

● Current and Temperature Sensitivity for Maximum Design  Flexibility and Application

● RoHS & REACH Compliant

Panel Mount, Through Hole, Surface Mount

Wire, Welding, PCB Mountl, Rivet

● Shaded Pole Motors

● Permanent Split Capacitor Motors

● Fluorescent Lighting Ballasts

● HID Ballasts

● Transformers

● Recessed Lighting Fixtures

● Automotive Accessory Motors

● Vacuum Cleaners

● Automotive Accessory Motors

● Solenoids

● PC Boards

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com

UL(America):

Standards: UL 60730

File No.: E516553 / E516554

UL_TMS_17AM_SETsafe & SETfuse.pdf

cUL (Canada):

Standards: CSA-E60730

File No.: E516553 / E516554

cUL_TMS_17AM_SETsafe & SETfuse.pdf

TUV (Germany):

Standards: IEC 60730

File No.: R50532346

TUV_TMS_17AM_SETsafe & SETfuse.pdf

CQC (China):

Standards: GB/T 14536

File No.: CQC22002332055

CQC_TMS_17AM_SETsafe & SETfuse.pdf

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.

Quality Policy.

Qualified Supplier of Raw Materials.

Incoming Quality Control (IQC):

Acceptance Quality Limit (AQL), Dimension, Function, Visual Inspection, RoHS & REACH Test. etc..

Process:

Online Inspection and Function Test 100%, etc..

In Process Quality Cortrol (IPQC): AQL, Dimension, Function, Visual Inspection, etc..

Final Quality Control (FQC):

AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test, etc..

Reliability Test:

AQL Sampling Test.

Outgoing Quality Control (OQC):

Packaging, Labeling, Quantity Inspection, etc..

Agency Information:

Safety Certificate Agency Annual, Quarterly Audits. Include UL, cUL, VDE, TUV, KC, PSE, CCC. etc..

Quality Management System:

TUV Approved and Issued Certificate.

SETsafe | SETfuse

SET

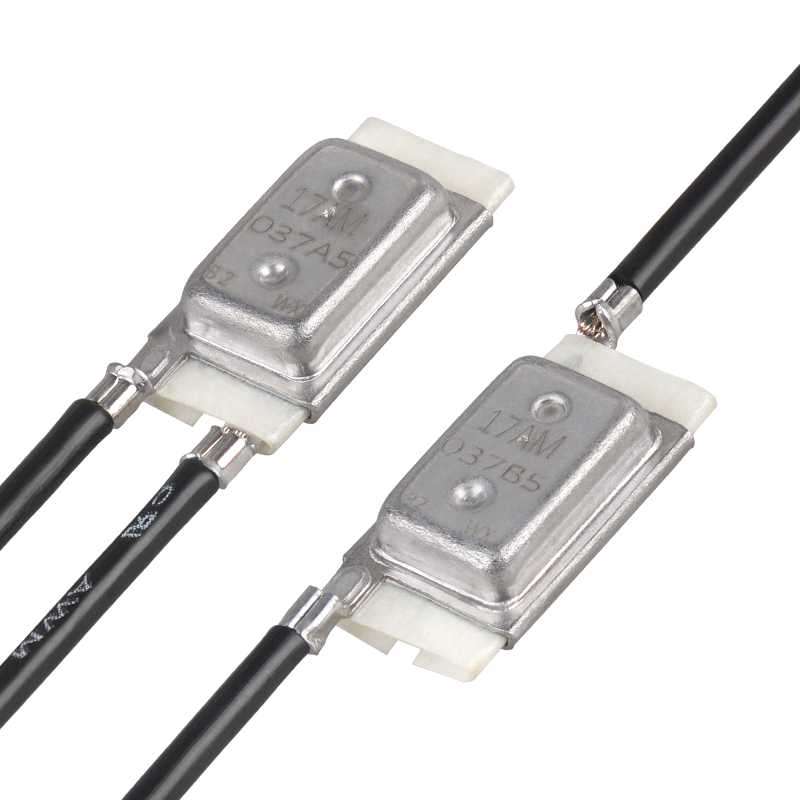

SETsafe | SETfuse thermal protector (TMS) mainly uses bimetal disc to sense current or temperature. When the temperature of the bimetal disc reaches the pre-calibrated temperature, the bimetal disc quickly trips, connect or disconnect the circuit. Ambient temperature increasing or current increasing or both of the above may cause the temperature of the bimetal to reach its pre-calibrated temperature, thereby connect or disconnect the circuit. This device covers rated current from 0 to 20 A, rated operating temperature from 30 °C to 175 °C by various part numbers. It complies with RoHS and REACH environmental protection requirements.

17AM series
